Adding Transmit Frequencies (Trimble R750 Base Station)

Note: Before proceeding, please ensure that you have a valid ACMA transmission licence with your current contact details. This licence must be provided to your SITECH representative in order to have the frequency added to your receiver via T.I.M. (Trimble Installation Manager) The ACMA .pdf will need to be provided before any transmit frequency is loaded onto your receiver.

If you require a licence, please reach out to Radspec to assist in applying for a transmit licence. Radspec Application

1. Once you have an approved transmit licence, please make contact with your SITECH representative and send them a copy of the PDF and the serial number of the Base Station.

SITECH will need to add this licence via our Virtual Warehouse software. (Note: Winflash can no longer support the upload of .set files to R- Series Base Stations)

2. Your base will now need to be plugged into a PC or field device and T.I.M. will need to be run in order to upload the frequency. Please refer to the Updating Firmware (Trimble R750 Base Stations) page for instructions on using T.I.M.

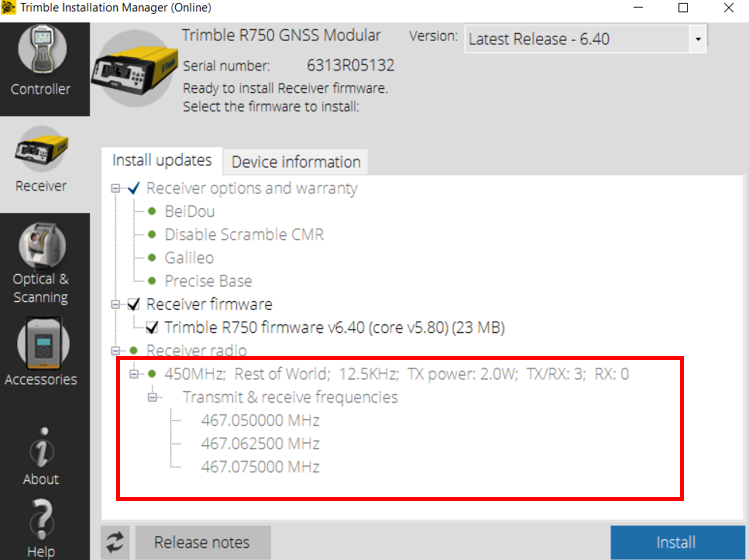

3. By completing the steps in the above link, this will allow for any new frequency's to be added to the Base. Once in the T.I.M. main screen, you will see any new frequency's as per the below example.

4. Your base has now been programmed to transmit.

Note: For further assistance please call 1800 748 324 or email supportgateway@sitechcs.com
