Trimble Installation Manager (TIM)- Updating Trimble GNSS Receiver Firmware and Warranty

- Before you start. The following items are required:

• GNSS receiver

• Trimble Installation Manager downloaded onto you PC

• USB Office Data and Power Y-Cable PN: 80751

- Power source. Either the GNSS battery (fully charged) or the Power Supply from a 2-Bay Charger. Connect the circle 7-Pin Lemo port of the cable to the yellow USB port of your GNSS receiver. Making Sure the red dots line up.

- Insert the battery into your receiver. If you are using the power supply, connect it into the Y-Cable. Connect the USB port into a device that has TIM (This can either be a Windows Data Collector or Windows Computer).

- Turn on the GNSS receiver.

- Run Trimble Installation Manager. The following Screen will appear:

- Press Receiver from the hardware column (a)

- Press Connect (b)

- The screen below will appear. Select via the drop-down arrow (a) the one which says “Trimble USB” (b) then press OK (c)

- You will be greeted by the following screen:

- Receiver type and serial number. (a)

- Under version (b) make sure “Latest Release” is selected.

- Scroll down until you see “Receiver Firmware” (c) and make sure that is checked.

- Press Install (d)

- A dialog box will appear. Press “Yes”.

- Once the update is completed press “Finish”.

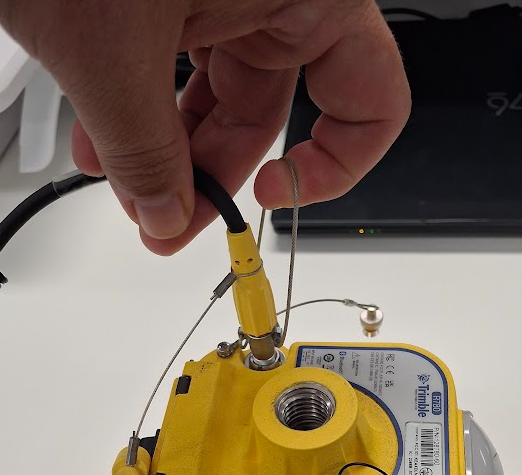

- Use the steel cable to disconnect the Y-Cable from the GNSS receiver.

Note: If the update fails please call 1800 748 324 or email supportgateway@sitechcs.com
