Volvo Co-Pilot Internet Setup (For VRS and NTrip Connections)

Before continuing with the below, please ensure internet connection is setup and SIM card has been activated and installed.

Please ensure that the aftermarket 4G modem is also fitted to the machine. The factory screen only support 3G (no longer supported in Australia).

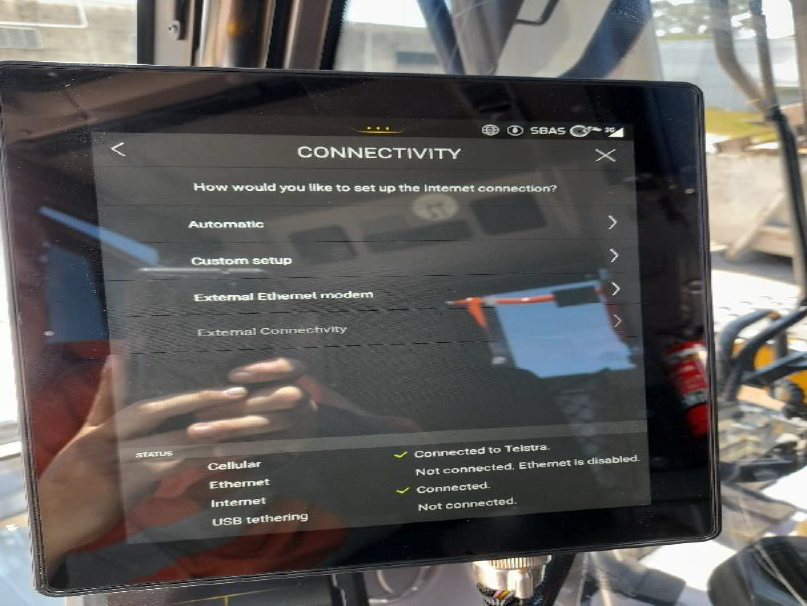

1. Swipe down from the top of the screen and tap the 'settings cogwheel' then tap 'connectivity'. You should see Cellular and Internet both connected. You will also see a signal bar and 3G or 4G in the top right corner.

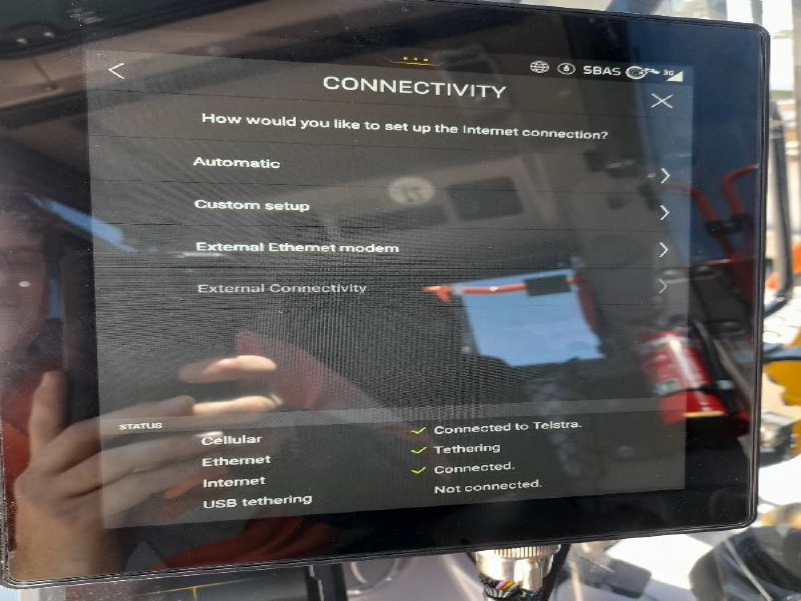

2. After internet is connected, tap 'custom setup'. Select 'Connect to a Local Network'. Then Select Router(Tethering). Ethernet should now say 'Tethering' at the bottom of the screen.

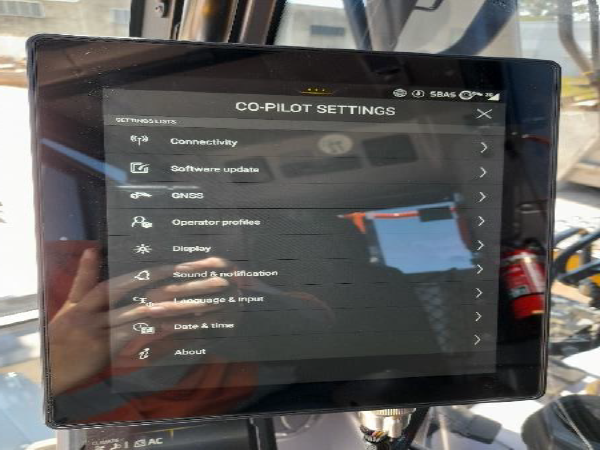

3. Return to Co-Pilot Settings, and tap GNSS

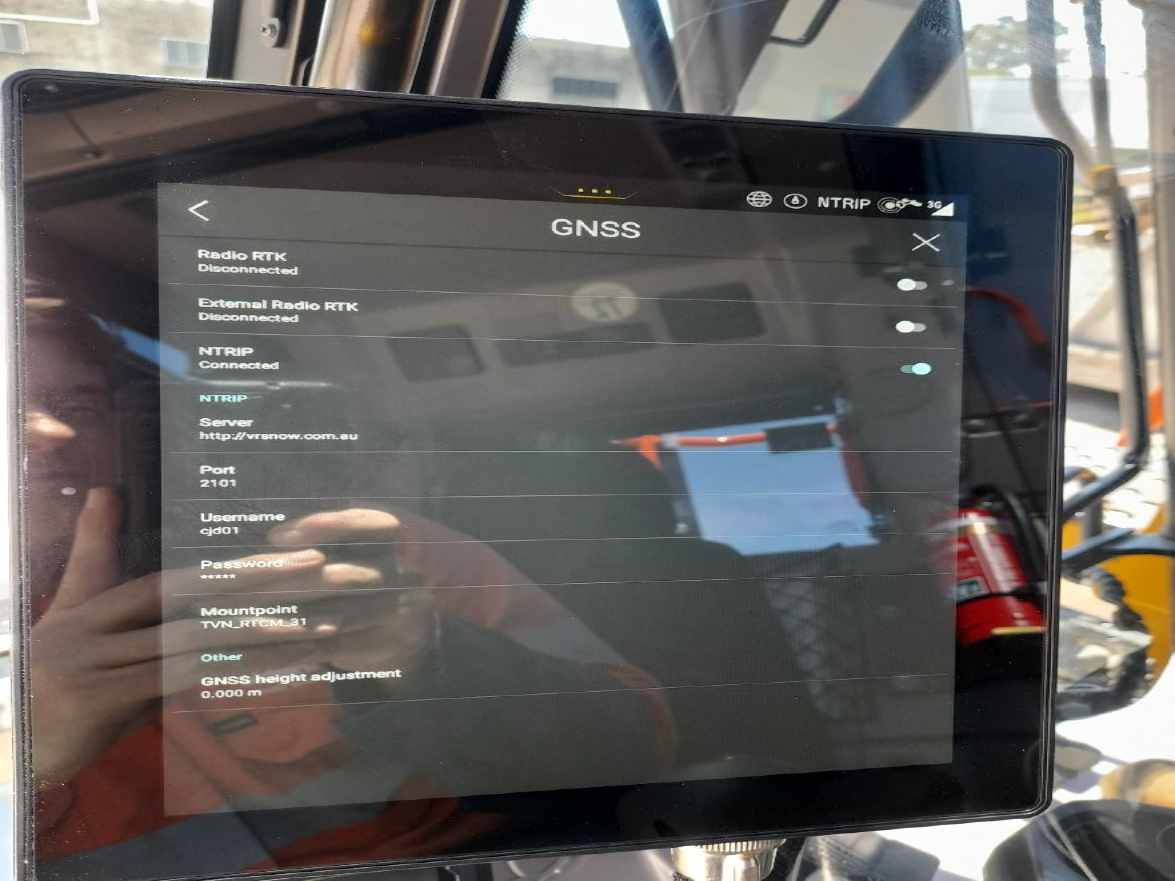

4. Tap the Slider bar on 'NTRIP' to activate NTRIP and Fill out the details as required.

Example Below

Server: http://vrsnow.com.au
Port: 2101
Username: DEMO
Password: DEMO

Mountpoint: TVN_RTCM_31

Note: CMR is not support as mount point option for Dig Assist

5. You will see “NTRIP” and the center circle filled in at the top of the screen if a successful NTRIP connection is made.

Note: For further assistance please call 1800 748 324 or email supportgateway@sitechcs.com
