Accessing the WebUI

The Trimble Web User Interface is a powerful browser based configuration tool on selected Trimble GNSS receivers.

WiFi Connection

To access the WebUI turn on the Trimble GNSS Receiver and connect to the receivers WiFi in the same method you would select any Wifi network. It will appear in the list of available networks as: Trimble GNSS XXXX (where the XXXX is the last 4 digits of the receivers serial number)

There's a chance the receiver will ask you for a WiFi password. The default password is: abcdeabcde

Once connected, open up a web browser and type: 169.254.1.0

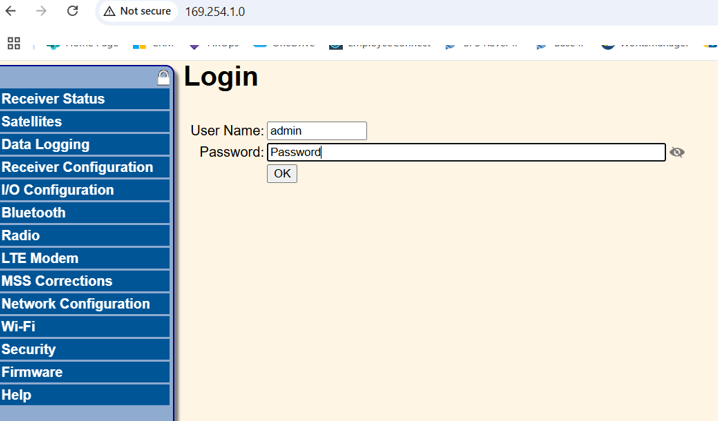

This will bring you to the initial login screen. This default credentials are

Username: admin

Password: password

OR

If SITECH have QA'd your receiver then the login credentials will be:
Username: admin
Password: Model_SerialNumber (example: R750_6425R7548)

Cabled Connection

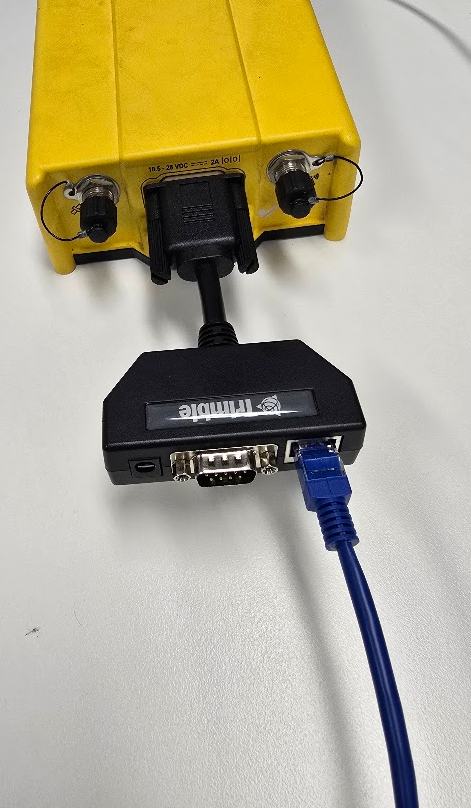

You can access the WebUI with a Ethernet cable and Multi Port Adapter (PN: 57168-HH).

Plug in the Ethernet cable from the base to your PC/ Laptop.

Open up a web browser and type: 169.254.1.0

This will bring you to the initial login screen. This default credentials are:

Username: admin

Password: password

OR

If SITECH have QA'd your receiver then the login credentials will be:
Username: admin
Password: Model_SerialNumber (example: R750_6425R7548)

Note: For further assistance please call 1800 748 324 or email supportgateway@sitechcs.com
