The following images have been provided to help identify the common locations of SNM94x modems.
Note: The below is to be used as a guide only.

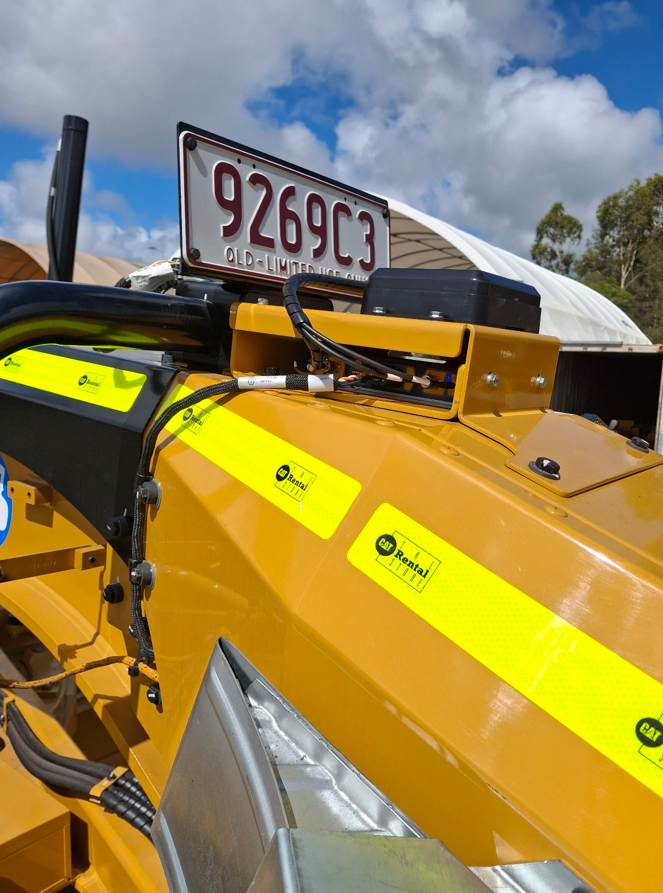

CAT M-Series (under seat)

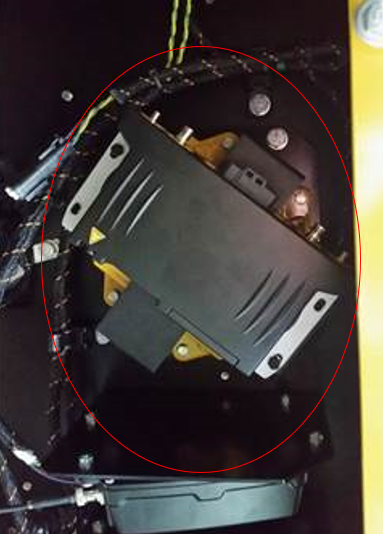

CAT 140/ 150 Series (on top of goose neck)

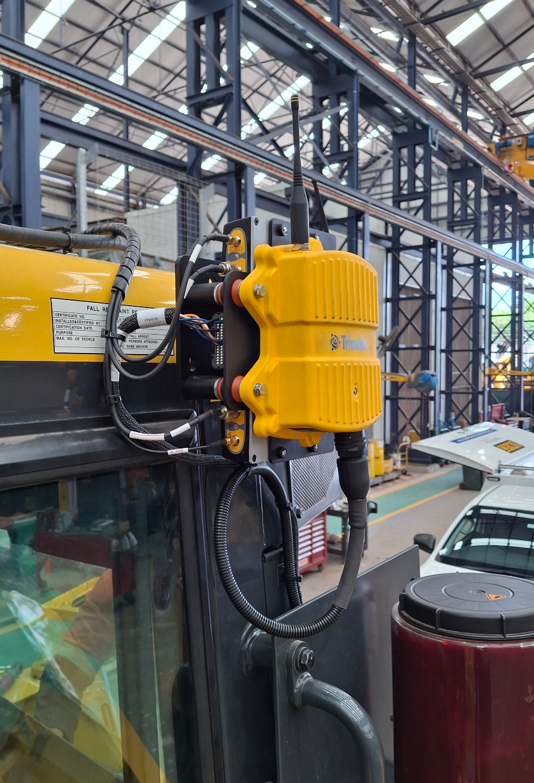

John Deere Grader (under floor, RH side)

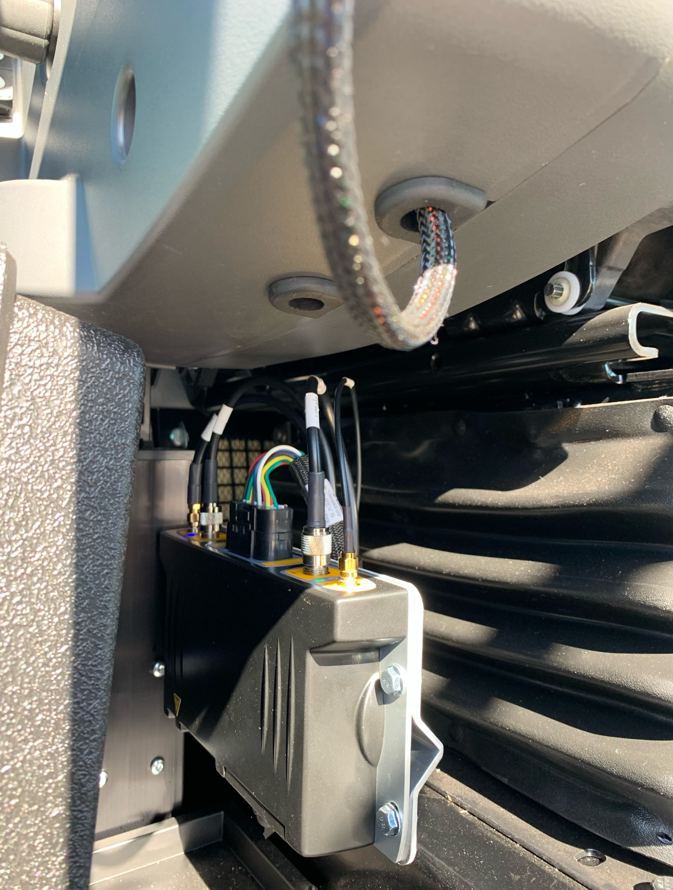

Dozer (typically on the rear section of the roof/ ROPS

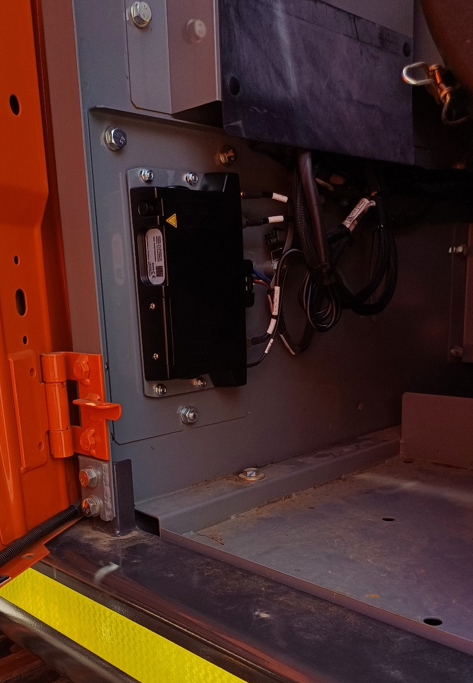

Generic HEX/ Excavator (roof mount)

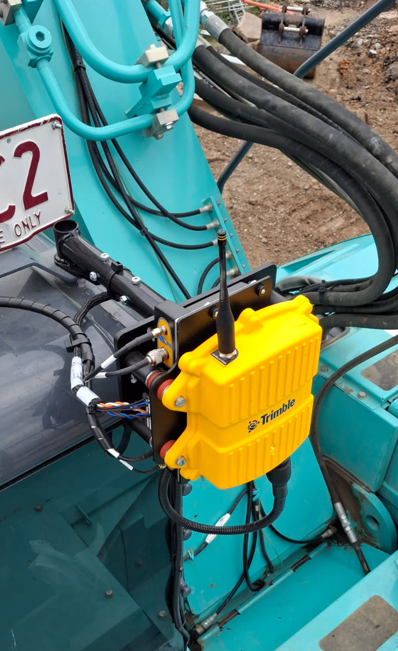

Generic HEX/ Excavator (engine bay mount)

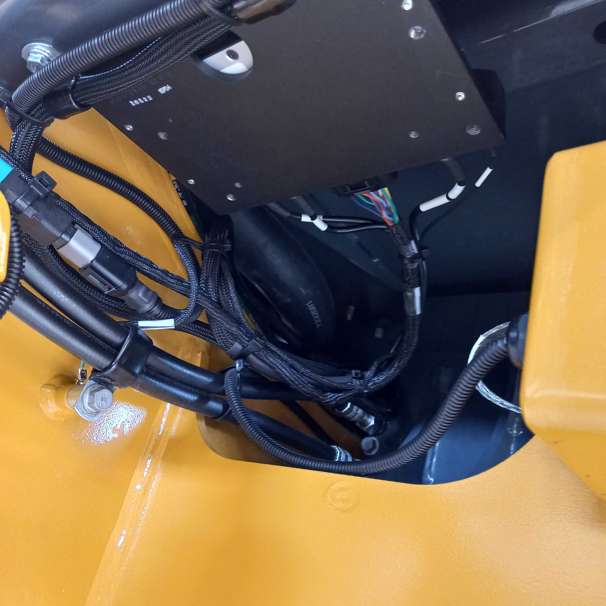

CAT Next Gen Excavator (under floor mount)
- The belly plate (under the operators seat) of the machine will need to be removed in order to access the Modem. Note: Additional port configurations will need to be setup by your local CAT dealer for the modem to operate.

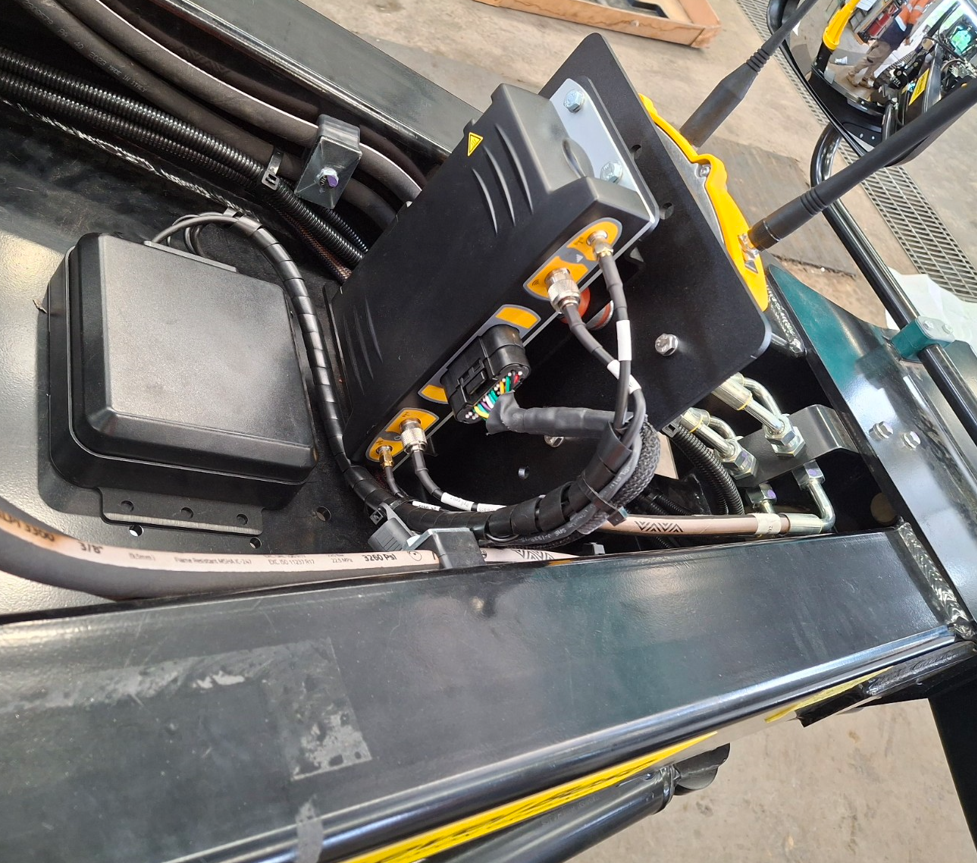

Skid Steer (mounted to the blade attachment)
