Updating Radio Receive Frequencies (Using Trimble SiteWorks)

Use Trimble SiteWorks to connect with your Trimble GNSS receivers for setup of receive only frequencies (Rx).

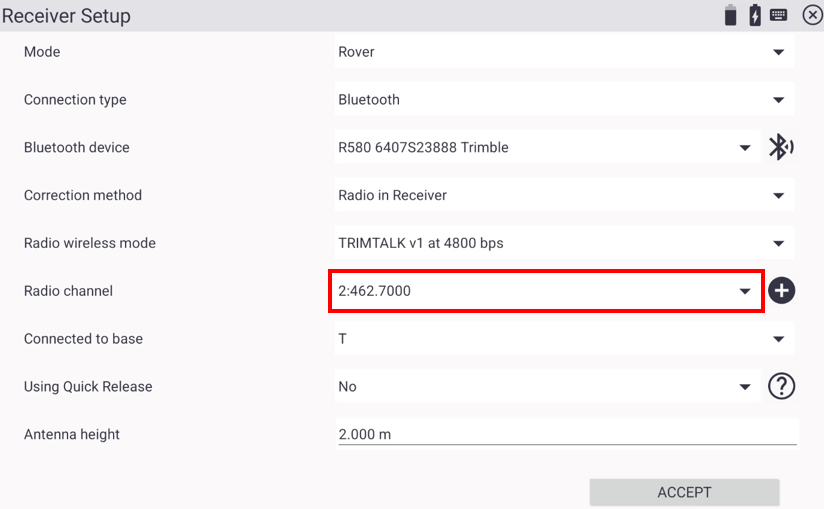

1. Navigate to the Receiver Setup menu

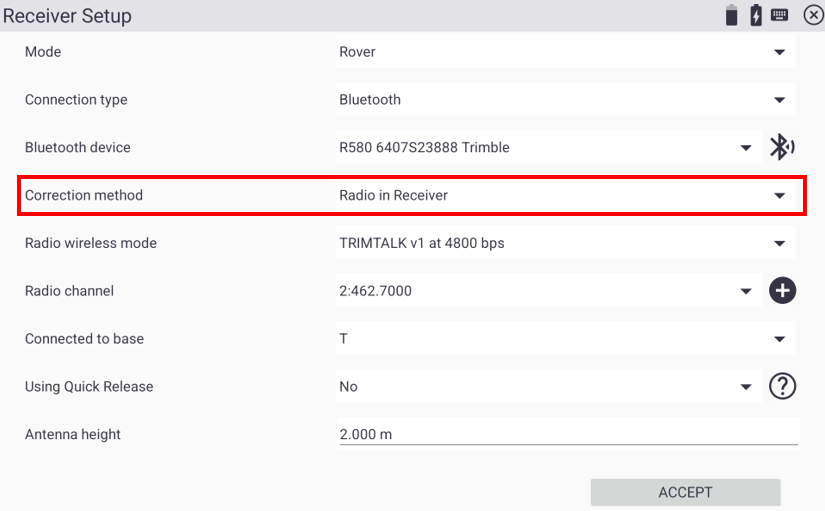

2. Connect your receiver to the controller and confirm your Correction method is set to "Radio in Receiver"

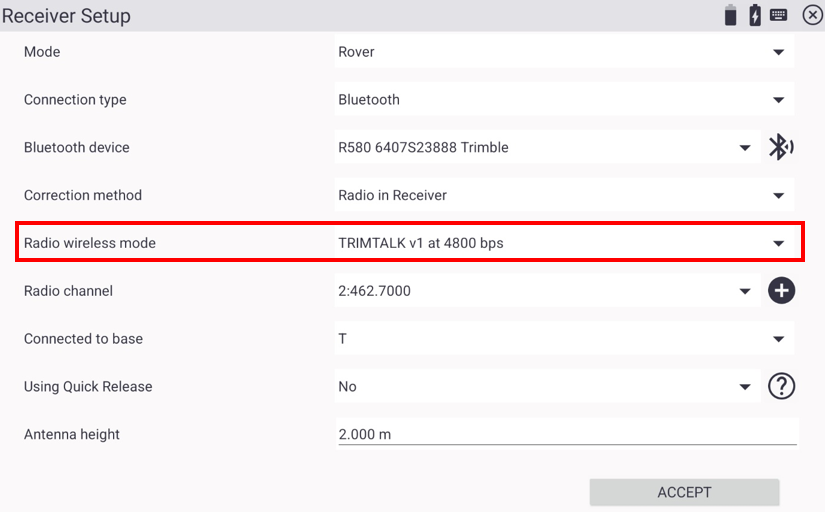

3. Confirm your Radio wireless mode is setup to match the Base Station settings.

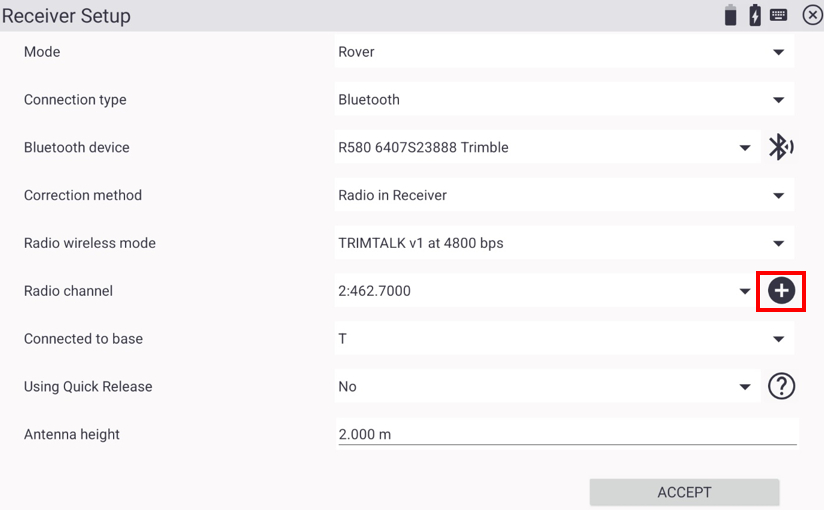

4. In the Radio channel line, select +

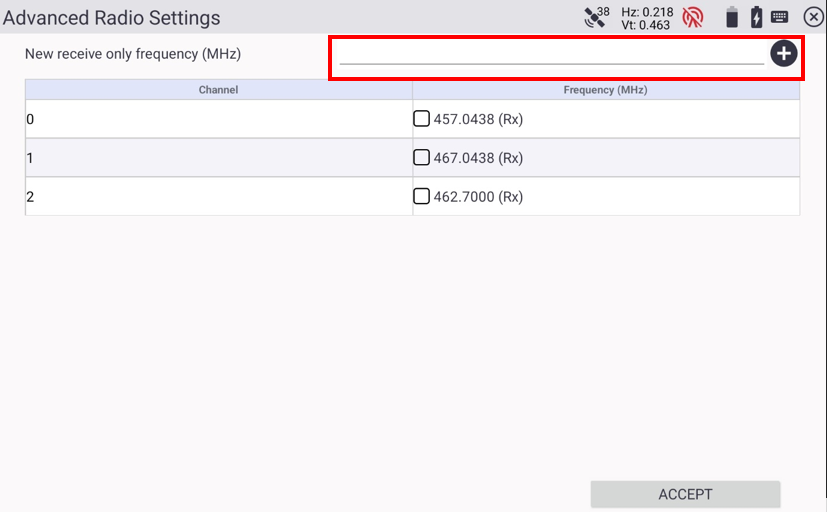

5. This will enter the Advanced radio Settings menu. Enter the Rx Frequency you want to use (e.g., 462.7000 MHz, depending on your base station) at the top of the screen. Once you have entered in your frequency, tap on Accept and this will bring you back to the Settings screen.

6. The frequency will now be available in the list. By selecting the correct frequency, the receiver will now look for the Base Station.

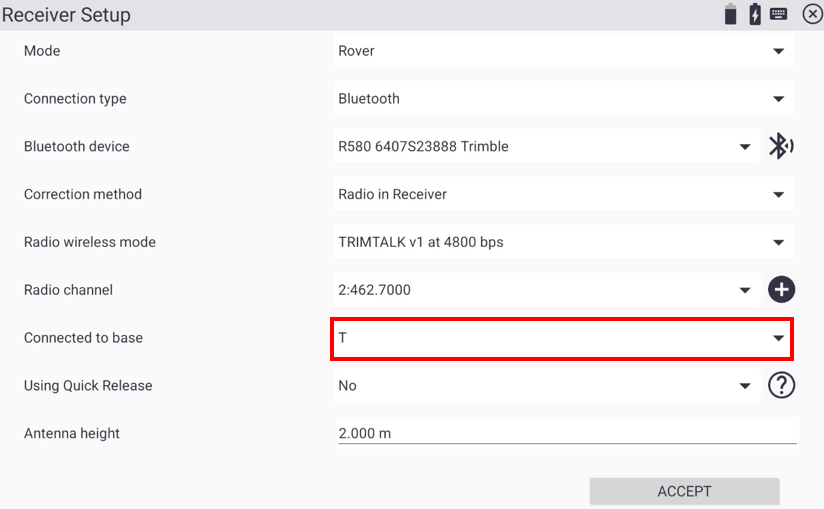

7. If successful, your Base will show up in the Connected to base drop box.

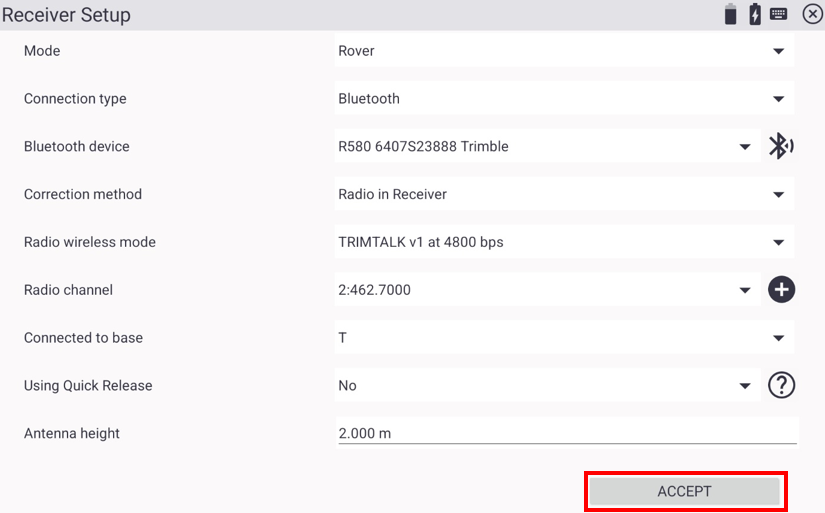

8. Once you have confirmed all other preferences, Select Accept.

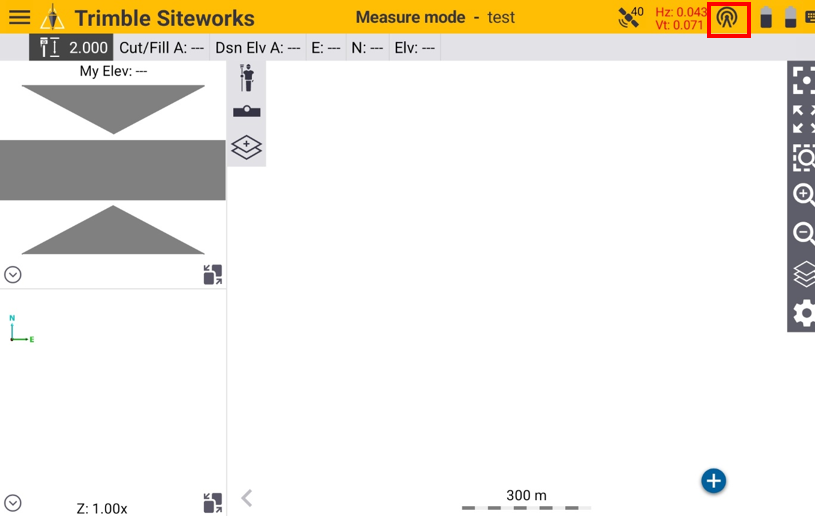

9. Back on the home screen, you can confirm your connection to the base by selecting the small, Antenna symbol on the top right of the screen.

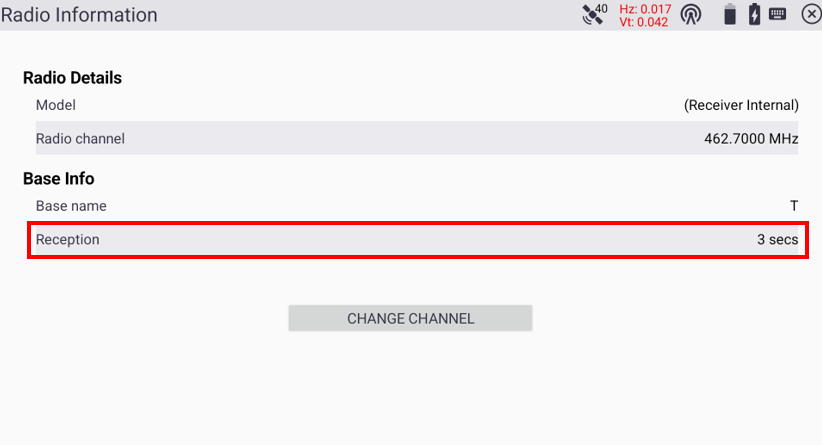

10. This will now show the Radio Information menu and you can confirm your connection via the Reception tab (typically under 2 seconds).

Note: For further assistance please call 1800 748 324 or email supportgateway@sitechcs.com
