Updating Radio Receive Frequencies (Using WebUI)

To add frequencies to your Trimble GNSS receiver via the WebUI, please connect you receiver you a Laptop on Windows controller via the below link.

Accessing the WebUI

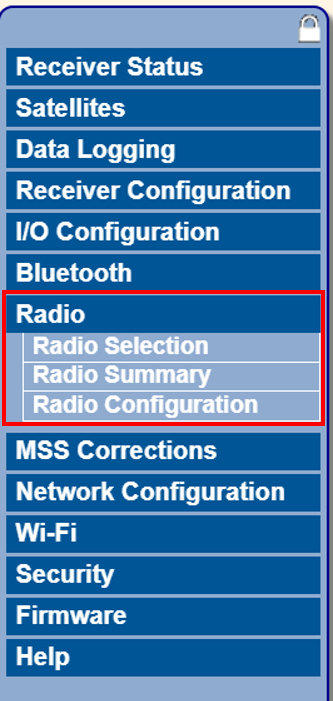

1. Once inside the WebUI, navigate the list on the left and select Radio Configuration.

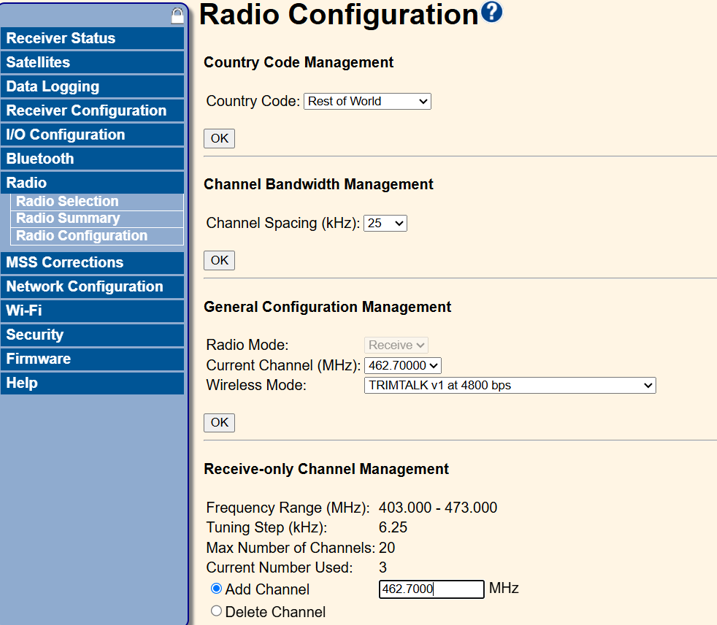

2. This will now show the available settings to add a receive frequency to the Rover.

3. Follow the below steps to add a receive (Rx) frequency to the receiver. After each step, select the OK box at the bottom of each section to save the settings.

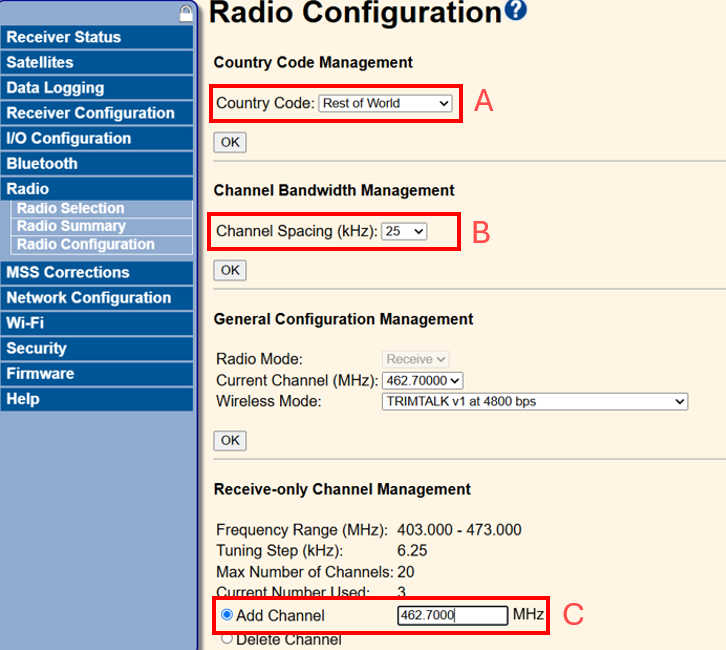

• Confirm the Country Code is set to : "Rest of World" (A)
• Match the Channel Spacing settings that are on your Base Station (B)
• Select the Add Channel and type in your Frequency in the box (C)

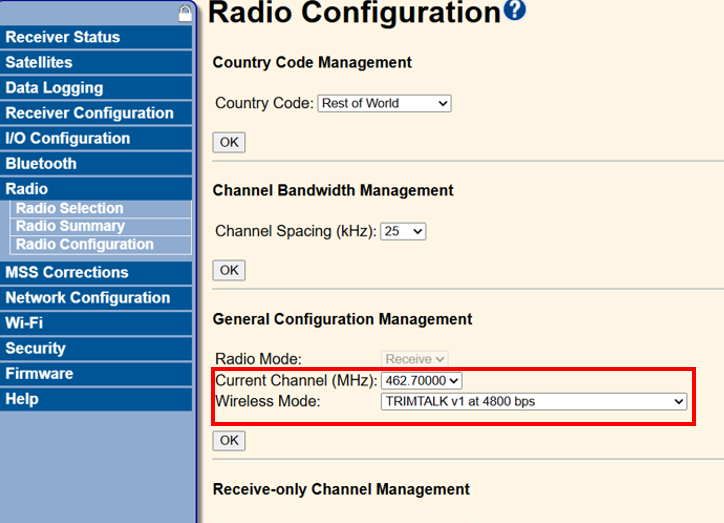

4. You will now see your new frequency available in the Current Channel list.
