Syncing EarthWorks Machines to a WorksManager Project

Once the Adding New EarthWorks Machines to WorksManager section has been completed, please refer to the below for Project syncing. Note: the device will need to be added to an active project inside WorksManager before completing these steps.

Method 1: WebUI Sync (used for first time setup)

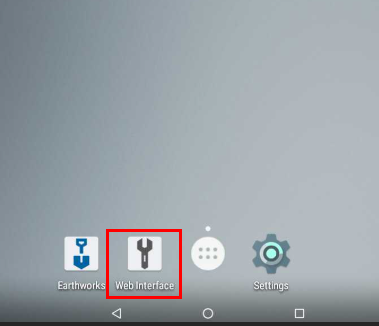

1. Login to the Web Interface app on the machine

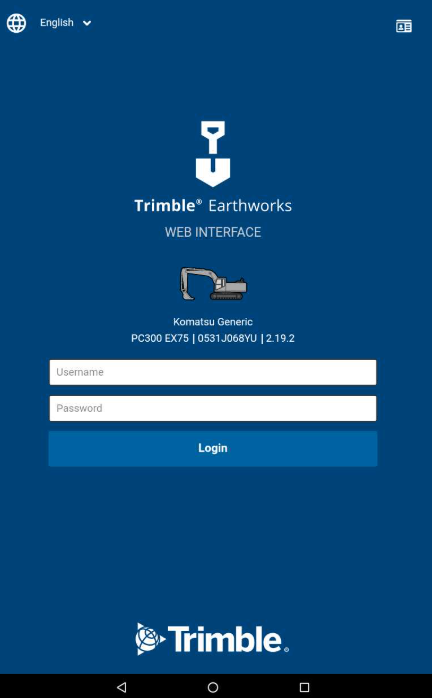

2. This will take you to the login page. If your machine was Installed by SITECH Construction System, the login will be as per below

User: admin

Password: Sitech#01

Note: Please reach out to your local SITECH dealer for the correct user and password information

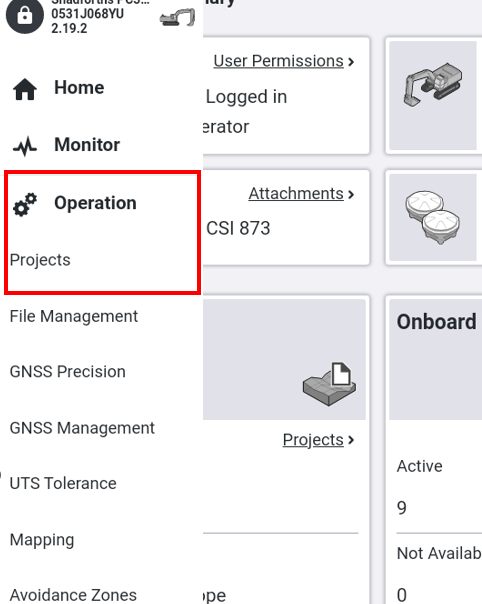

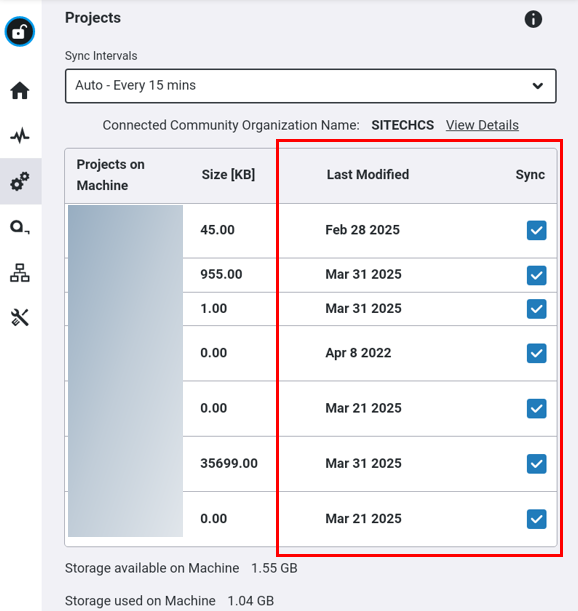

3. Once inside the WebUI, navigate to the Operation menu, then Projects

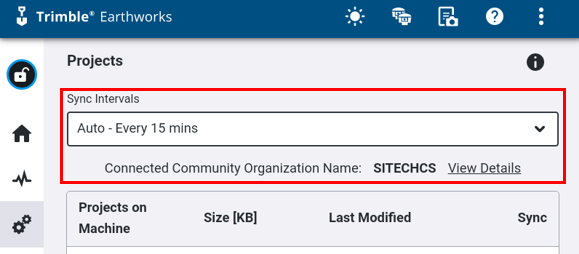

4. Insure the Sync Intervals are set to : Auto - Every 15 mins

5. Now select the Project you want the machine to be linked with.

6. This will now be setup to Auto Sync every 15 minutes.

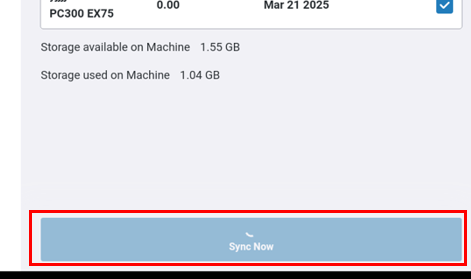

If a manual sync needs to be preformed, select the Sync Now tab at the bottom of the page.

Method 2: EarthWorks App Sync

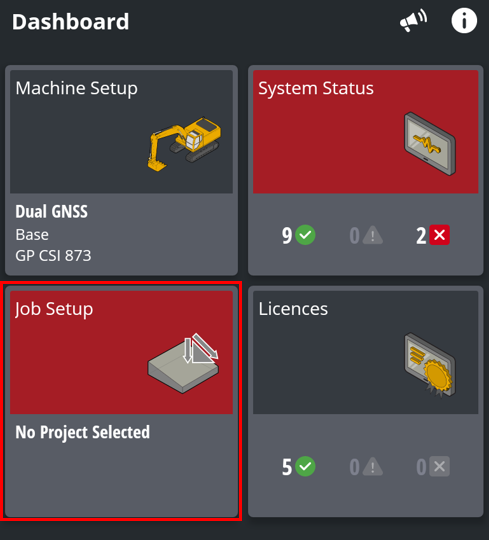

1. Inside the Dashboard select the Job Setup tile

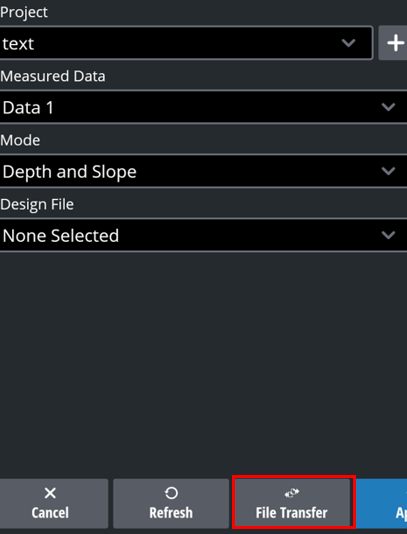

2. At the bottom of the next page, select File Transfer

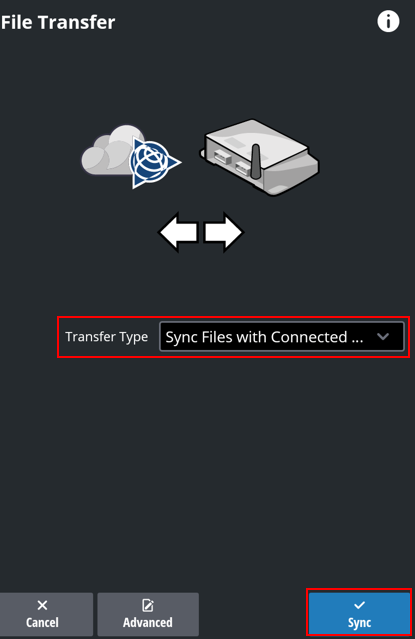

3. Now select the Transfer Type as Sync Files with Connected Cloud. Then tap on Sync.

4. The files will now sync from WorksManager and be available in the Project menu.

Note: For further assistance please call 1800 748 324 or email supportgateway@sitechcs.com
