Adding New SiteWorks Devices to WorksManager

1. Sign in to WorksManager using your TID credentials.

2. On the DEVICES page, click + Add at the upper right.

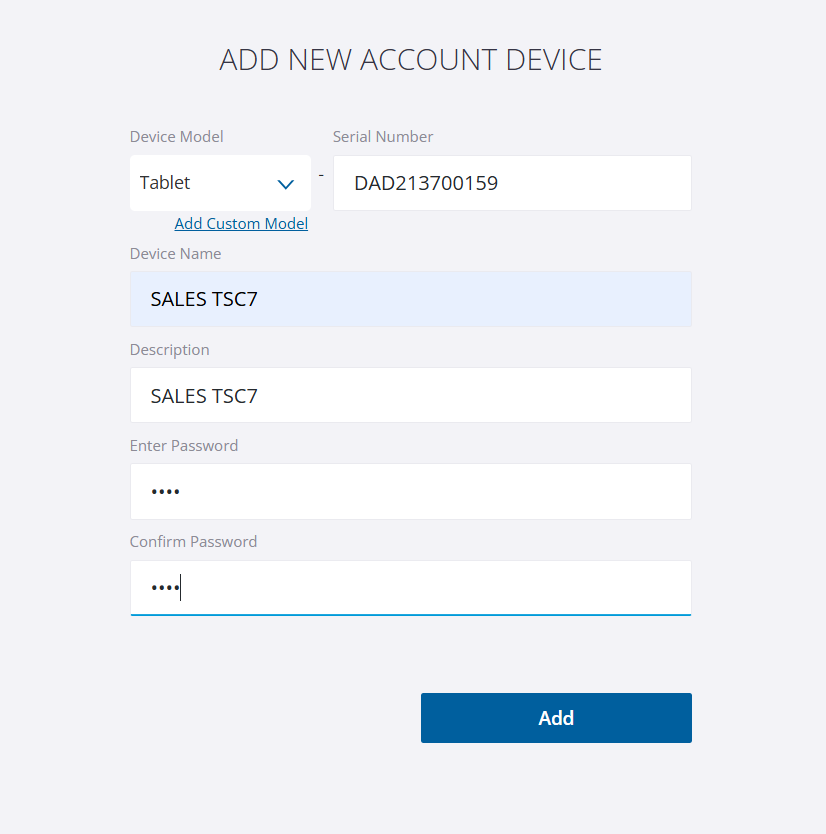

3. Enter the device information.

1. • • Model & Serial Number (*see below notes to help locate the serial number on the device)

     • Device name - (make sure the device name here matches with the name given on the field device. *See below notes on locating the device name)

     • Description (this can be a fleet or unit number on the device)

     • Password (**use the last 4 digits of the serial number of the device e.g 0159)

4. Click Add.

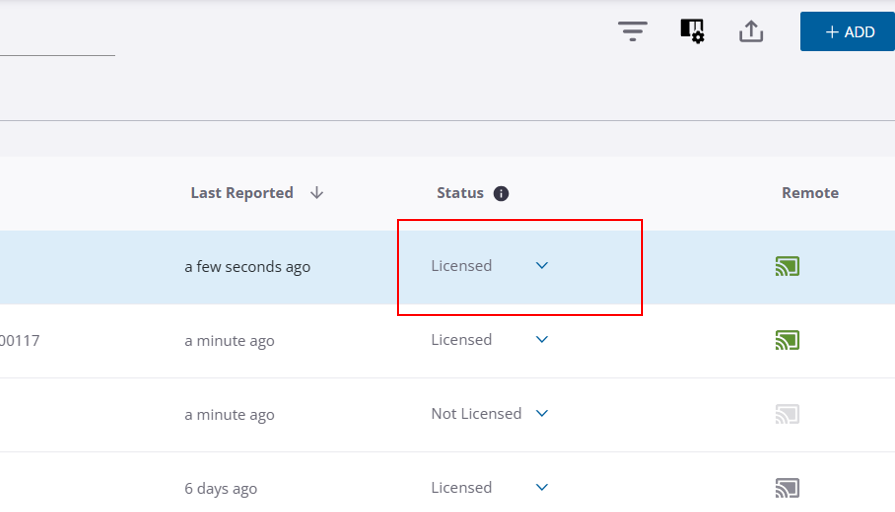

The device is added with ‘Licensed’ status by default. If there are not enough licenses available, it is added with ‘Not Licensed’ status. You can toggle between ‘Licensed’ and ‘Not Licensed’ status for the device any time.

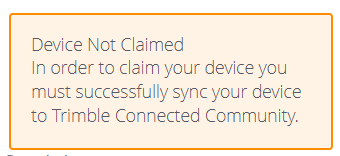

5. The device will now appear in the list. You will now see the below warning until the field unit has been successfully added to the cloud.

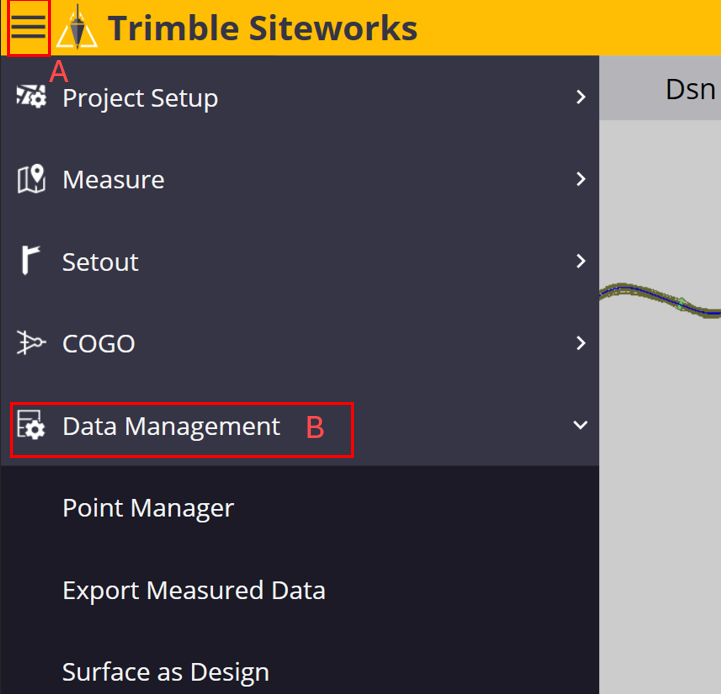

1. On the main screen inside SiteWorks, tap Menu (A)

2. Then Data Management (B)

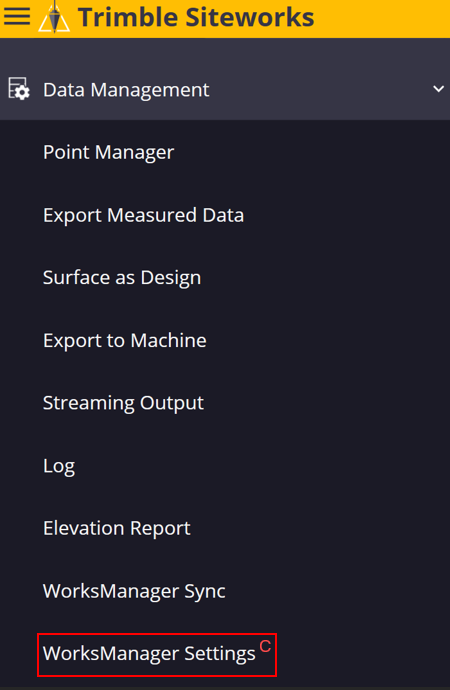

3. Then WorksManager Settings (C)

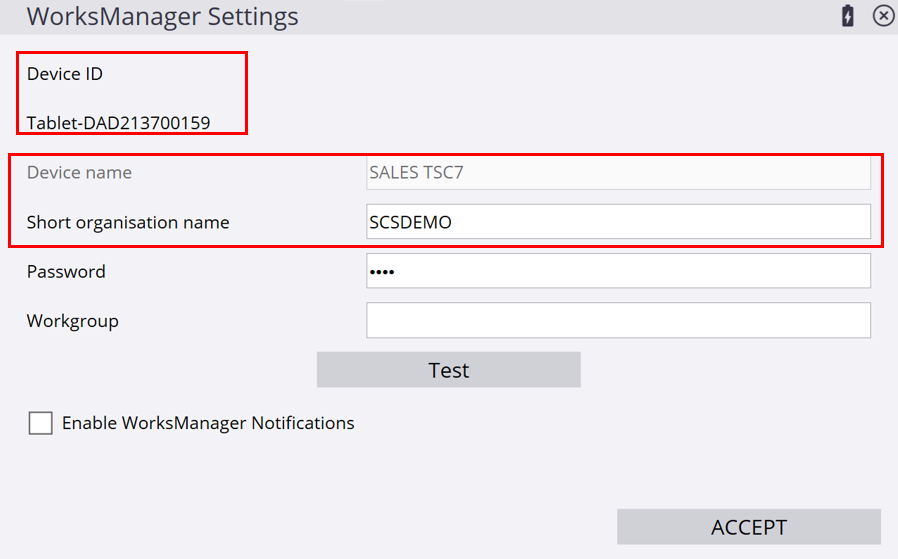

4. Find the Device ID and Device name. (note. if the device is new or has not been previously added to an account, the Device name will be blank and you will need to add your preferred name). Note:  These must be identical to what you enter in WorksManager.

**Adding password and testing connection inside SiteWorks

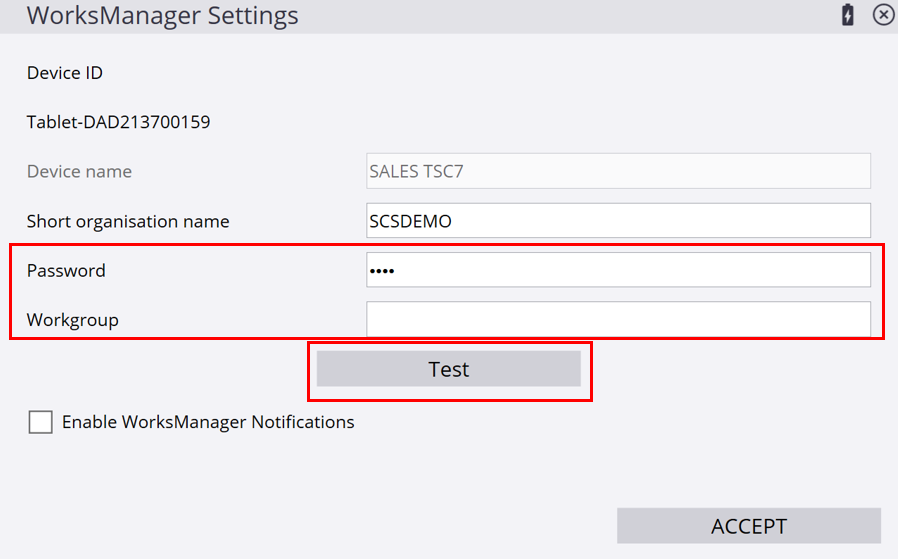

1. Once the above steps have been completed, inside the WorksManager Settings screen enter your 4 digit password (last 4 digits of the serial number) and tap on Test. Note: the Worksgroup field needs to be left blank.

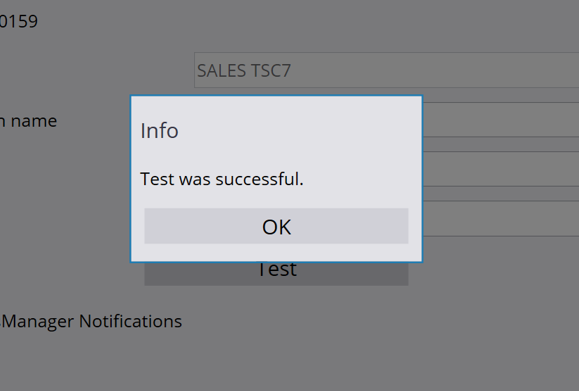

2. Once the test is complete, you will see the below screen showing Test was successful.

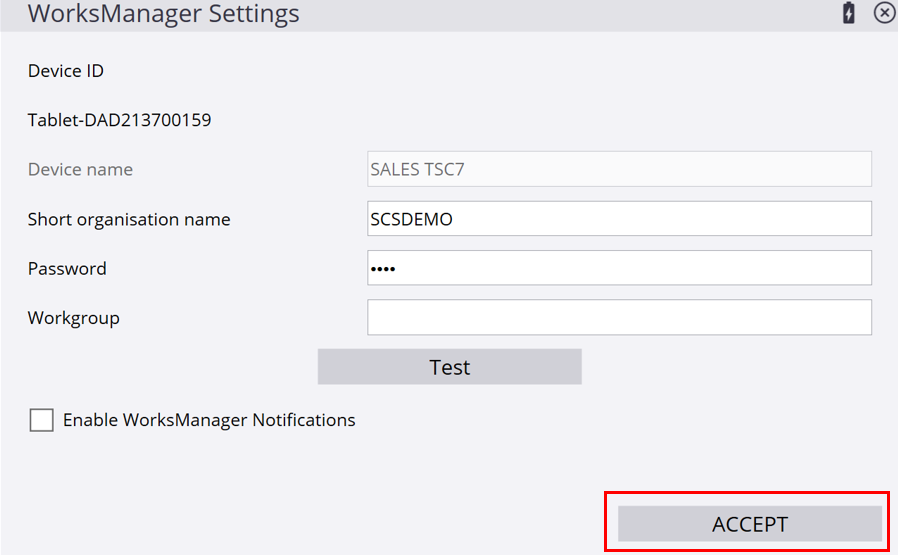

3. Select OK and then tap Accept.

The device will now be active inside your WorksManager account and is now able to be allocated to a project.

Note: For further assistance please call 1800 748 324 or email supportgateway@sitechcs.com
