Connecting To NTRIP Corrections

Note: Before proceeding with the below, insure your controller has a stable internet connection. Please refer to the following article for Internet Connection Workflows

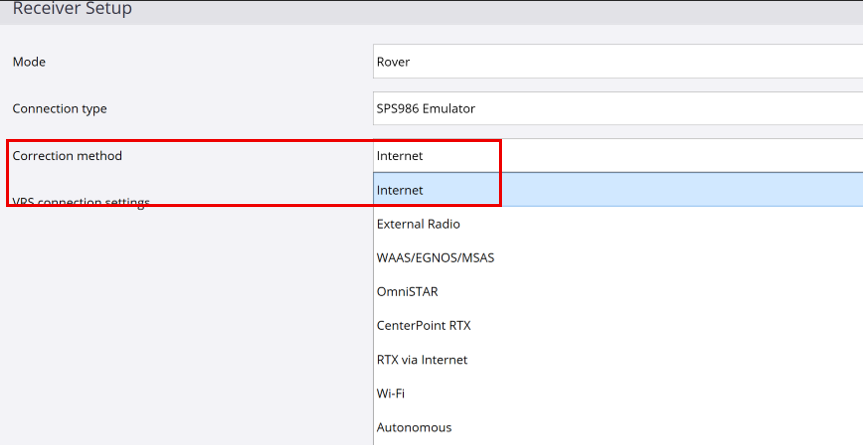

1. Inside the Receiver Setup page, connect your GPS Receiver to SiteWorks. Now select the Correction method as "Internet"

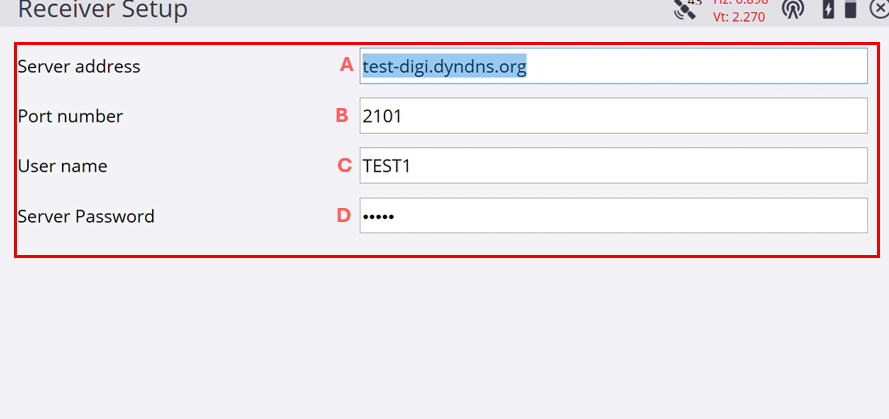

2. This will bring you to the below page. Follow the below to enter your NTRIP details.

Server Address (A) : This will be either an IP Address or DYN address supplied to you by SITECH

Port Number (B) will be: 2101

User name (C): this will be predetermined at time of base setup. Consult your Surveyor or SITECH Representative

Server password (D): this will be predetermined at time of base setup. Consult your Surveyor or SITECH Representative

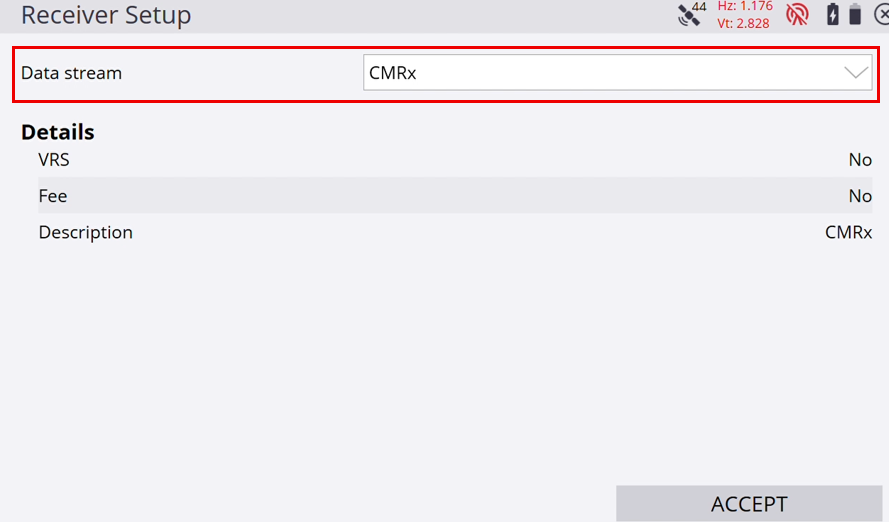

3. Once you hit Accept, the next page will prompt you to select a Data stream. Please select the desired stream and tap on Accept (for example: CMRx). Note. If you unsure on the data stream required, please check with you site Surveyor, selecting the incorrect stream can introduce errors.

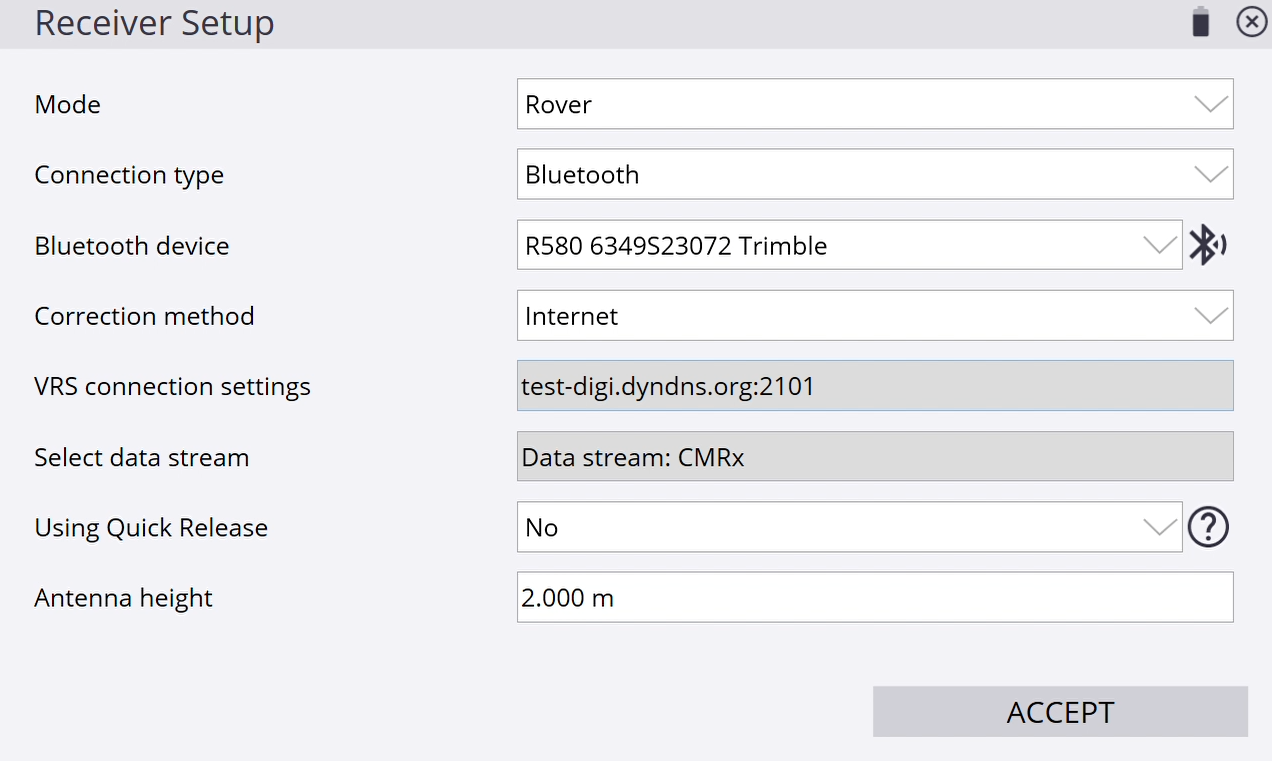

4. You will then be sent back to the Receiver Setup page to complete your rover setup. You will now be connected to the NTRIP Base.

Note: For further assistance please call 1800 748 324 or email supportgateway@sitechcs.com
