Uploading Data to Trimble EarthWorks/ CAT Grade (TD540 Display)

Once the USB has been configured please follow the below steps to upload data to an EarthWorks device. (please refer to the USB Stick Configuration section if you aren't sure on the USB setup )

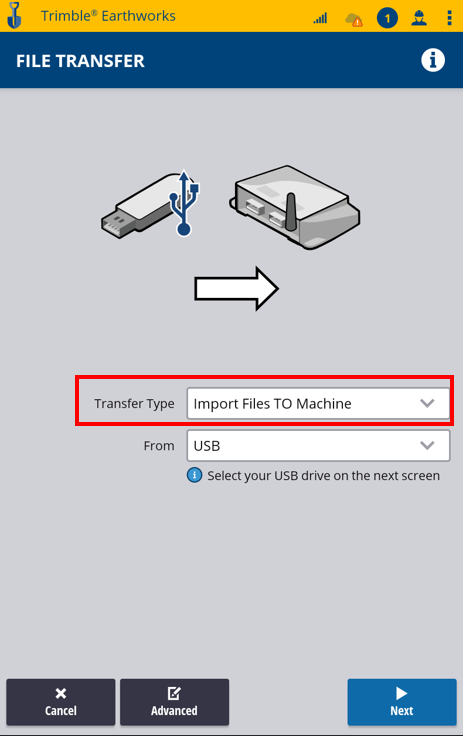

1. Once the file format is correct plug the USB into the screen. The file transfer menu should automatically appear. Under Transfer Type select Import Files TO Machine. Under From select USB then click Next.

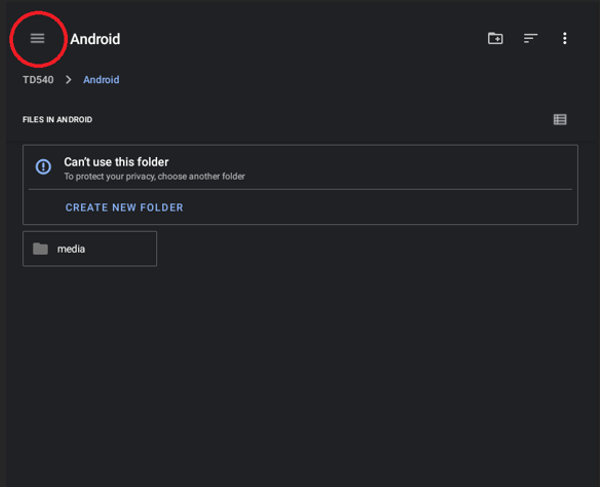

2. A window will now pop up. Using the 3 lines in the top Left of the screen.

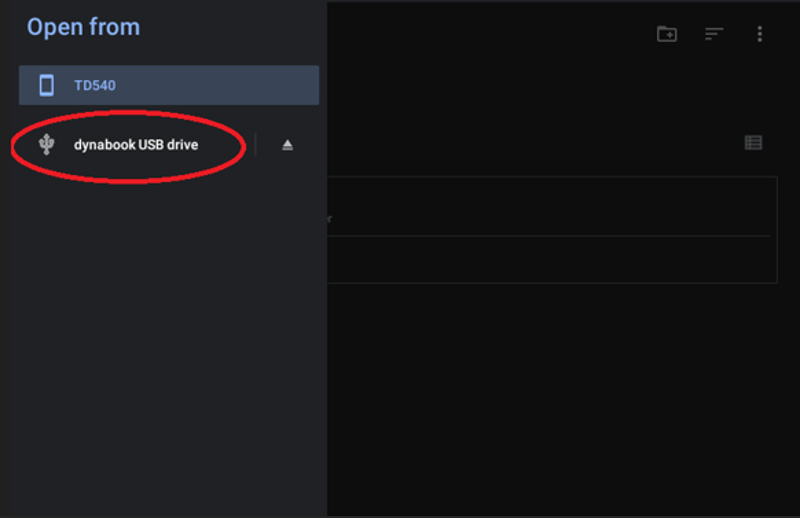

3. Then select the USB drive.

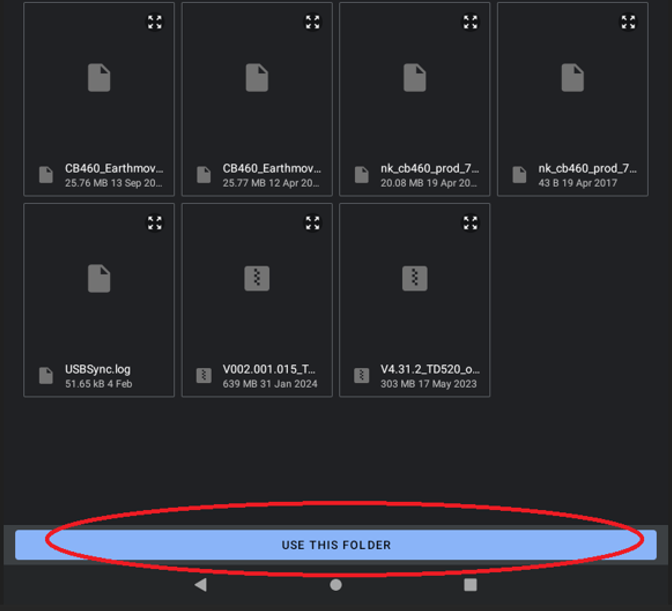

4. Inside this folder, select USE THIS FOLDER at the bottom of the screen.

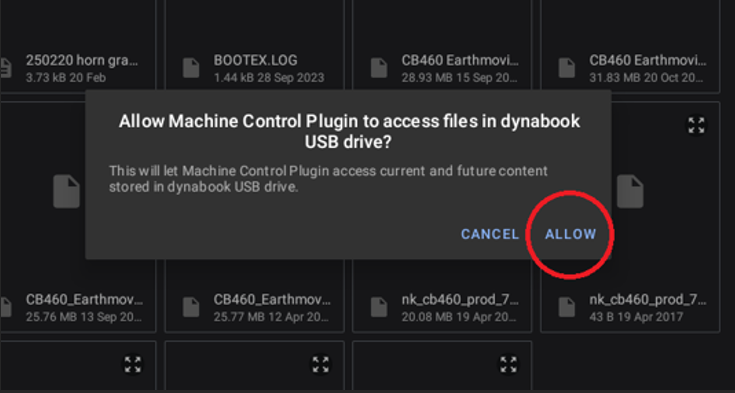

5. Then select ALLOW on the next pop up window.

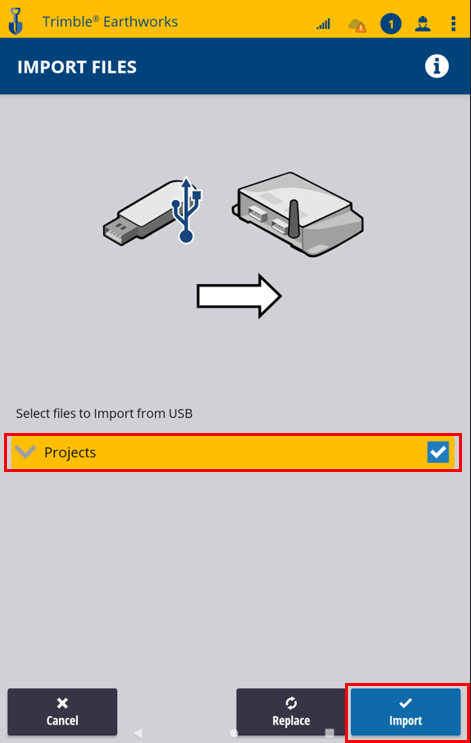

6. This will now take you back to the EarthWorks Import page. Now tick the Projects box and select Import.

7. Once this is completed, you will now see your project available inside the Projects Drop Box.

Note: For further assistance, please call 1800 748 324 or email supportgateway@sitechcs.com
