Adding GNSS Radio Frequency

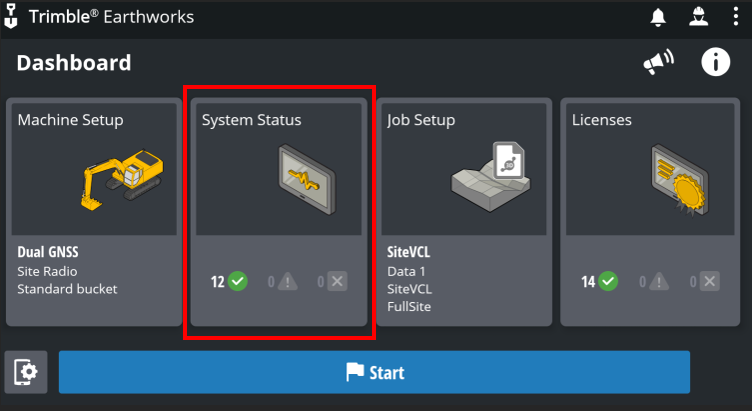

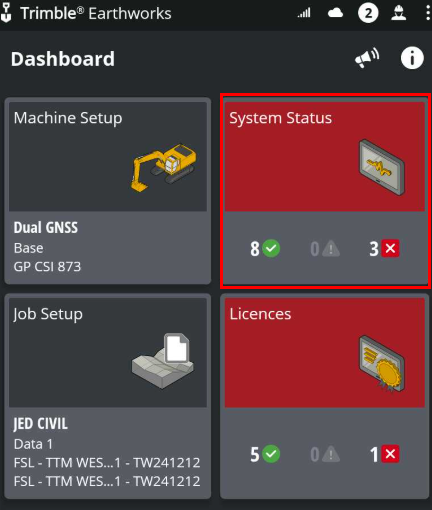

1. Lunch the EarthWorks App. Once inside Dashboard, select the System Status tile

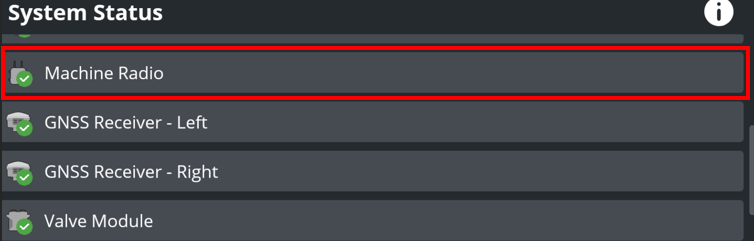

2. insure that the SNR Radio (Machine Radio) has a green tick before proceeding

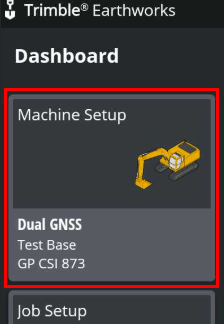

3. Now select the Machine Setup tile

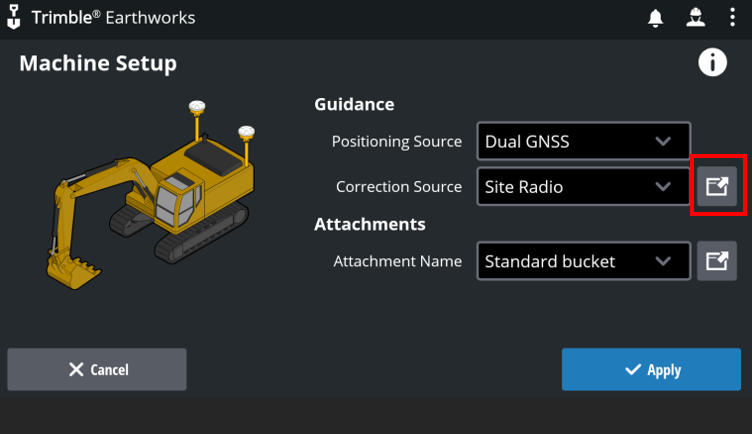

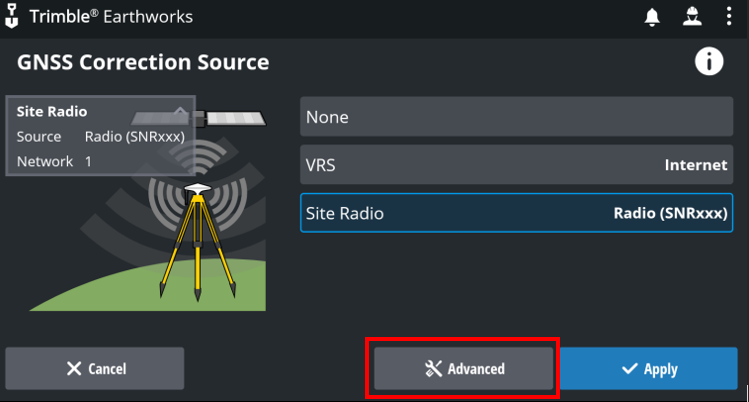

4. Select the grey box next to Correction Source

5. inside here, Select the Advanced menu

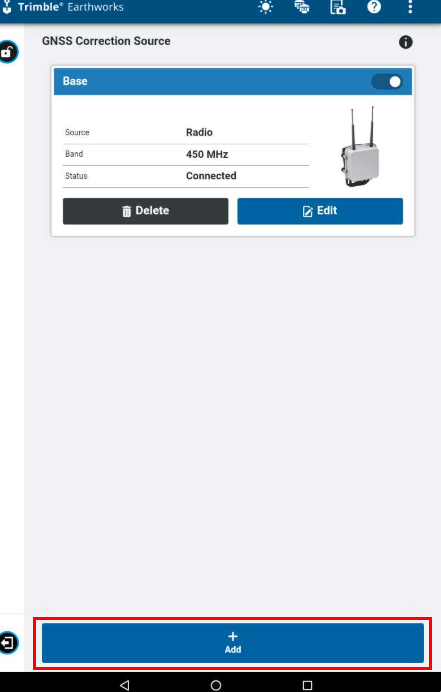

6. This will take you to the GNSS Correction Source page. Select +ADD at the bottom of the screen

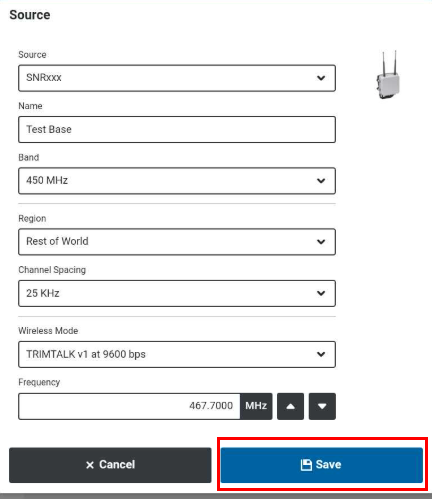

7. Using the below example, make sure you have the correct details entered, as per the site requirements. Once the details are correctly entered, hit the save button.

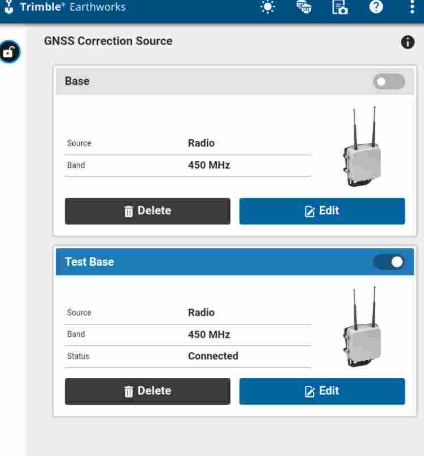

8. The new Frequency is now available in the list.

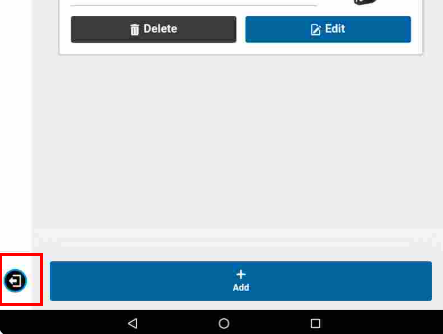

9.  You can now go back to the EarthWorks App using the exit button at the bottom left of the screen

10. Login to the App again and select the Machine Setup tile

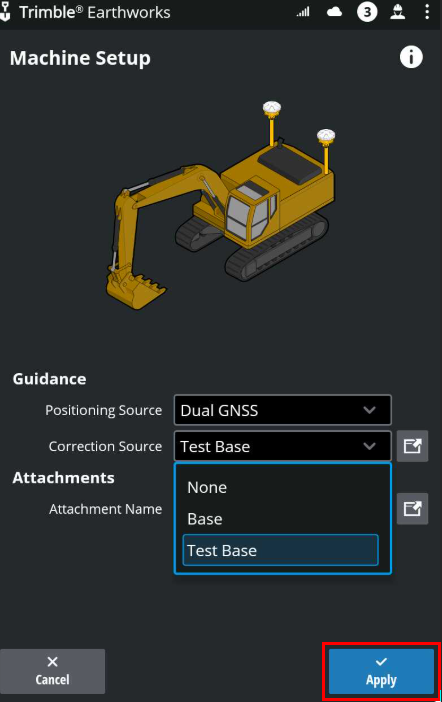

11. Your new Frequency will now be in the list, available for selection. Tap on the name required and select Apply at the bottom on the screen.

12. To confirm you are receiving corrections from the base, select the System Status tile

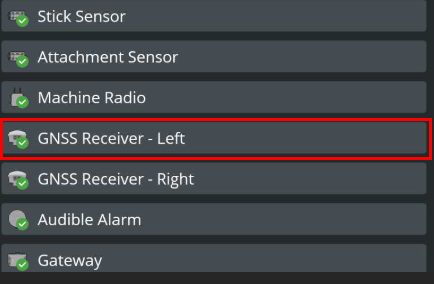

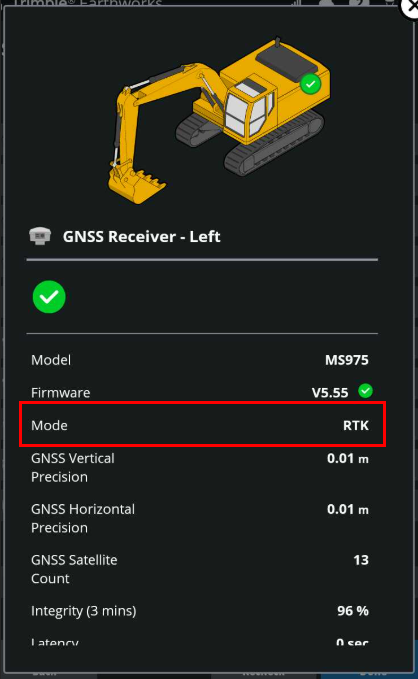

13. Now select the Left Receiver in the list

14. If successfully connected to the base, you will see the Mode change to RTK. You are now Connected to the base.

Important: please insure your machine has the correct files uploaded and Bench Check has been completed before commencing work.

Note: For further assistance, please call 1800 748 324 or email supportgateway@sitechcs.com
