Measuring A New Bucket (Standard Type)

Before proceeding, you will require the below. Note: Minimum EarthWorks Version 2.14 is required for this function. please reach out to your SITECH Representative if you require an update.

• Tape Measure
• 600mm Smart Level
• Plumb Bob

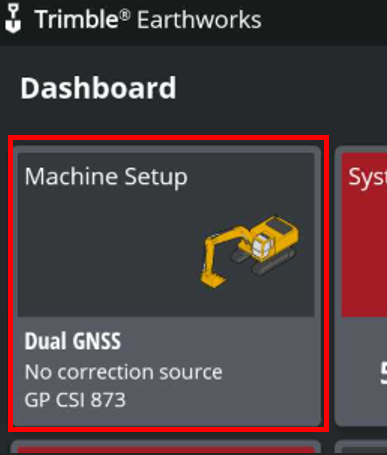

1. On the dashboard, select the Machine Setup tile

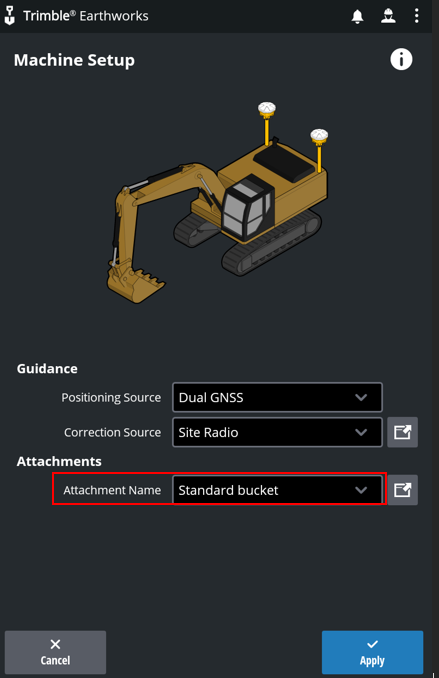

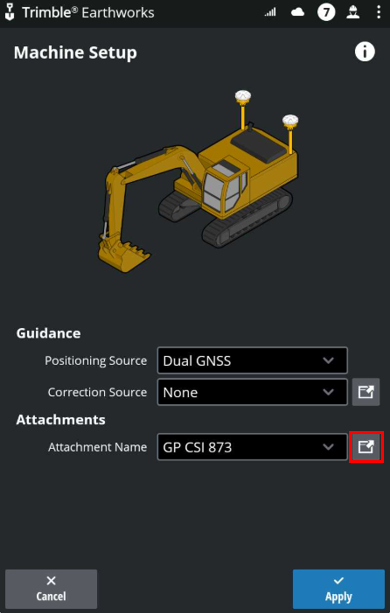

2. Select the Grey edit box next to the Attachment Name

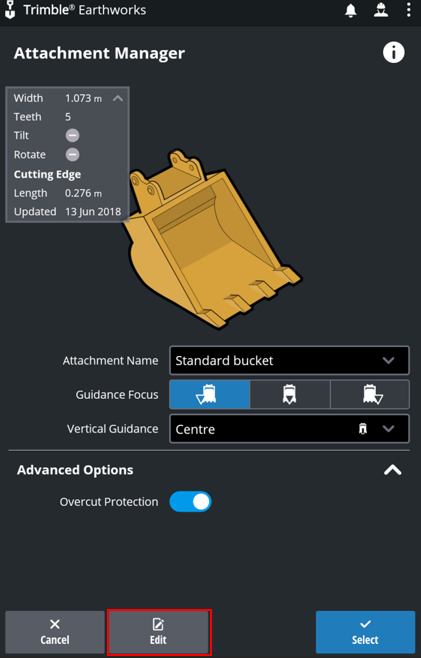

3. Now select the Edit Tab

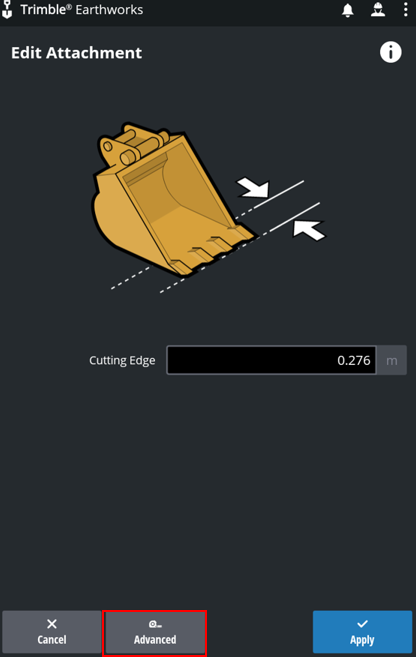

4. Select the Advanced menu

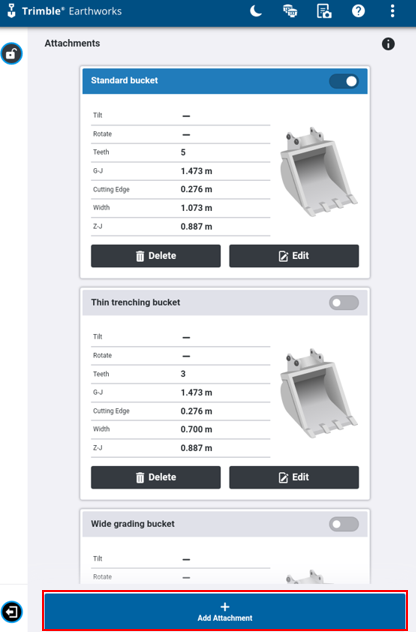

5. This will take you to the Attachment menu where you can add/edit current buckets. To add a new bucket, Select + Add Attachment

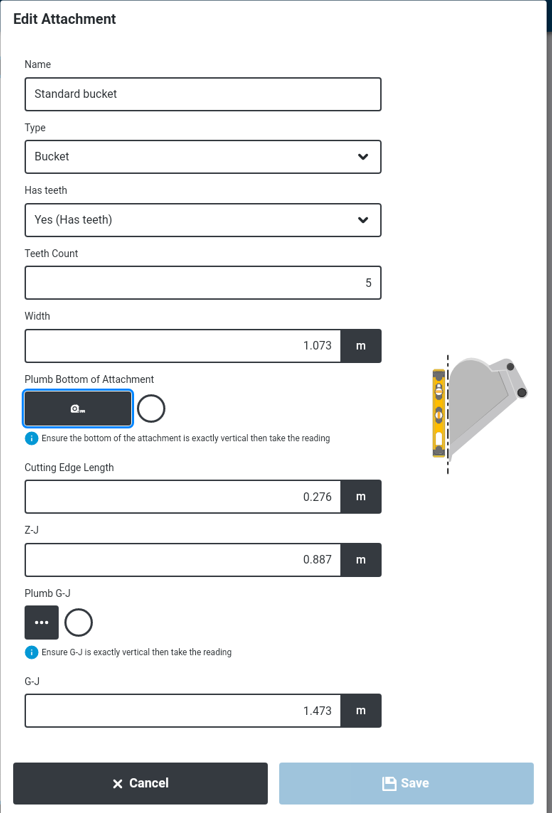

6. Fill out all the below boxes with the correct information. By selecting the box, this will also show the pins required for measurement. See below example.

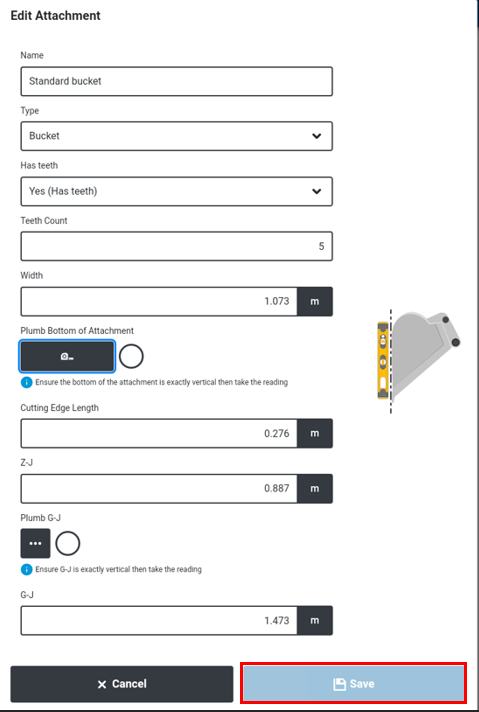

7. Once the details have been entered, hit Save.

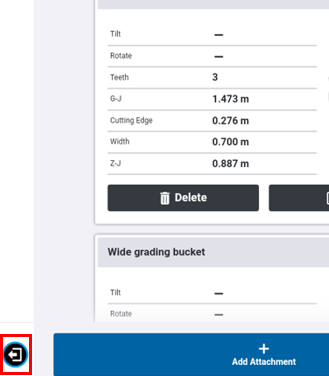

8. Once the above has been saved, navigate back to the EarthWorks app using the exit button at the bottom left of the screen. You will have to login again to get back to the dashboard.

9. You will now see your newly created bucket in the list of available attachments.

Note: For further assistance, please call 1800 748 324 or email supportgateway@sitechcs.com
