Connecting to an IBSS/ WorksManager Base

1.Before connecting to IBSS, confirm you have a working internet connection and your device has been added to WorksManager. Adding New EarthWorks Machines to WorksManager.

2. Confirm your Base Station has been added to the account and has been reconfigured correctly IBSS Configuration/ Setup

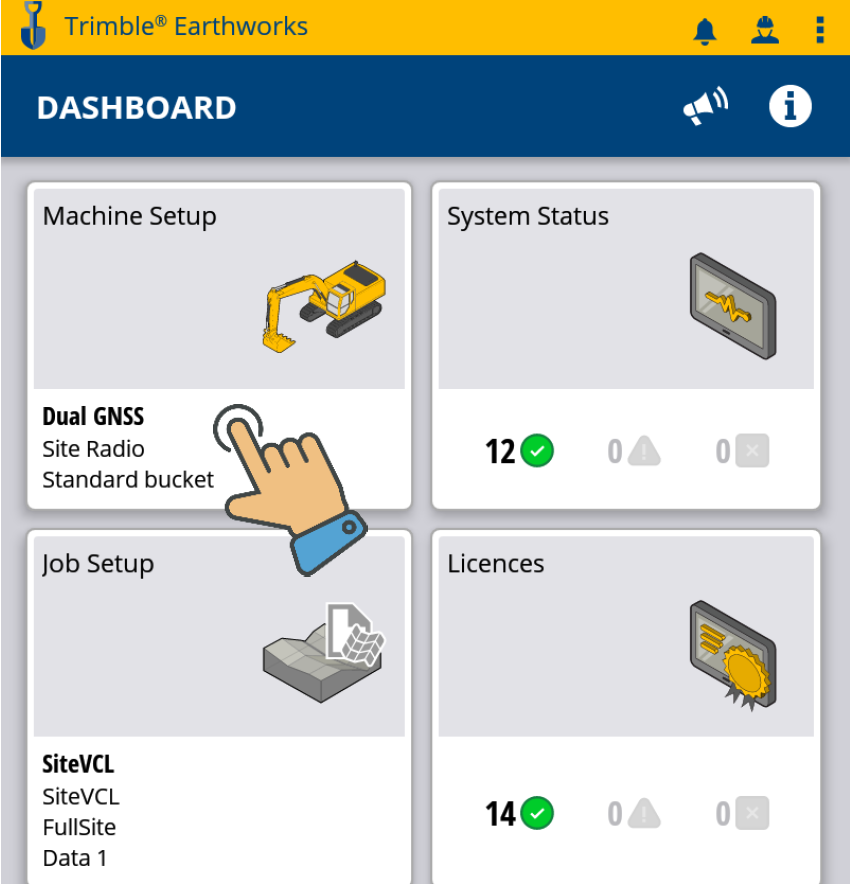

3. Once inside the EarthWorks App select the Machine Setup tab.

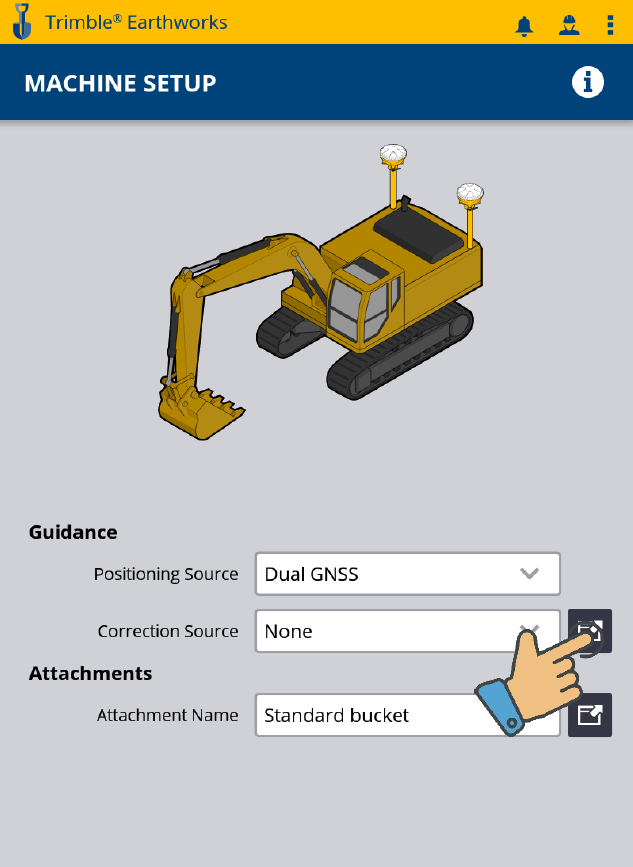

4. Then select the Black Square on the Correction Source line.

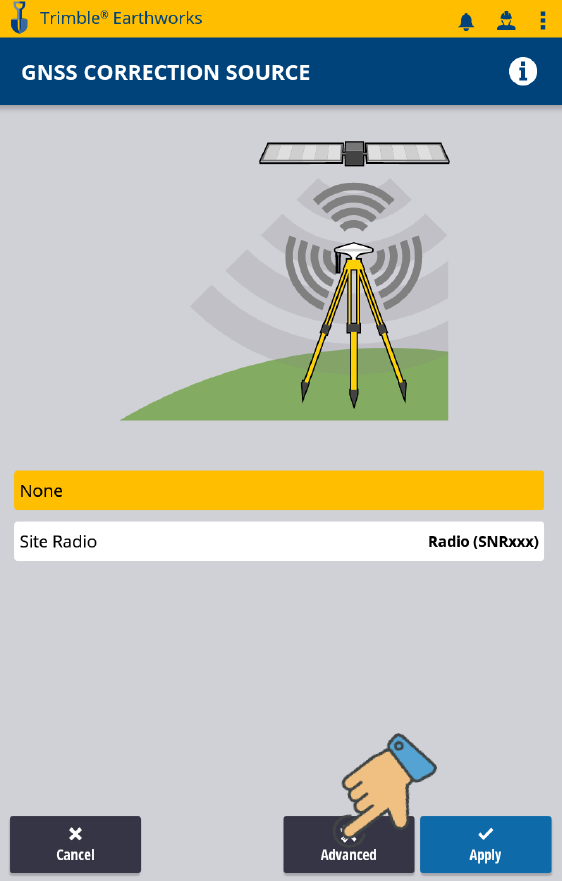

5. Select the Advanced option at the bottom of the screen.

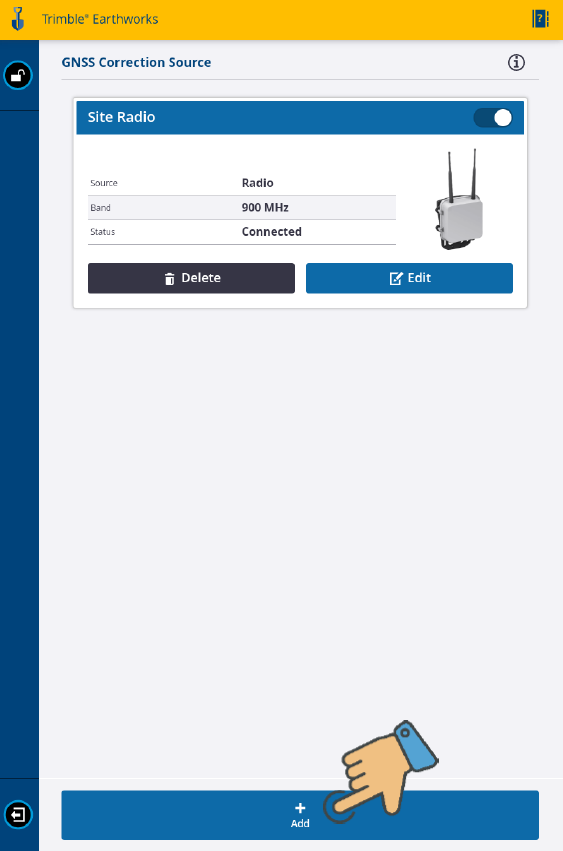

6. Now Select +Add at the bottom of the screen.

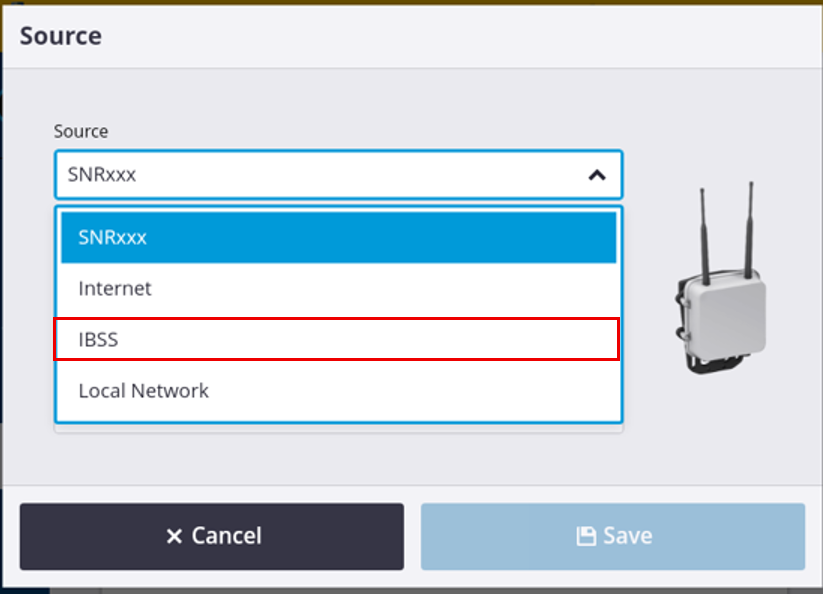

7. From here, select the Source as IBSS.

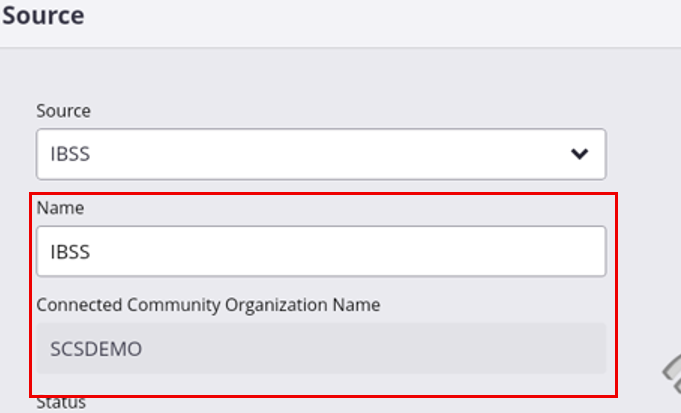

8. Once IBSS has been selected, type in a name of the base (e.g. below - IBSS) the organization name will appear automatically.

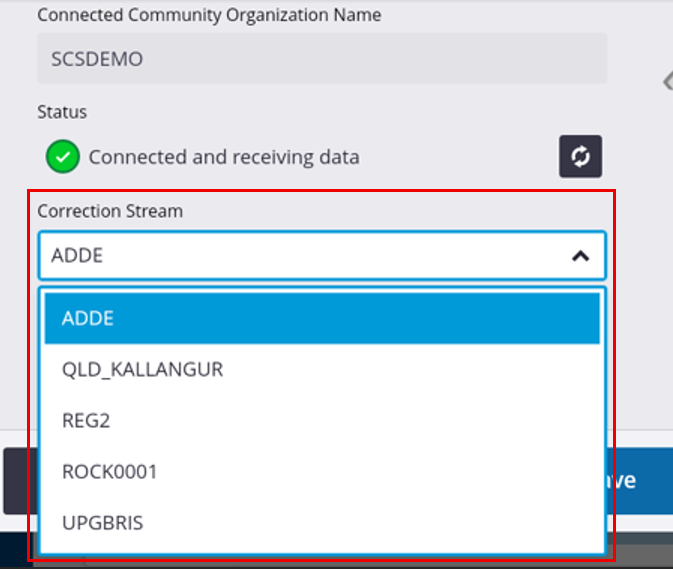

9. You will now see the list of available bases inside your WorksManager account. Select the correct stream required for site.

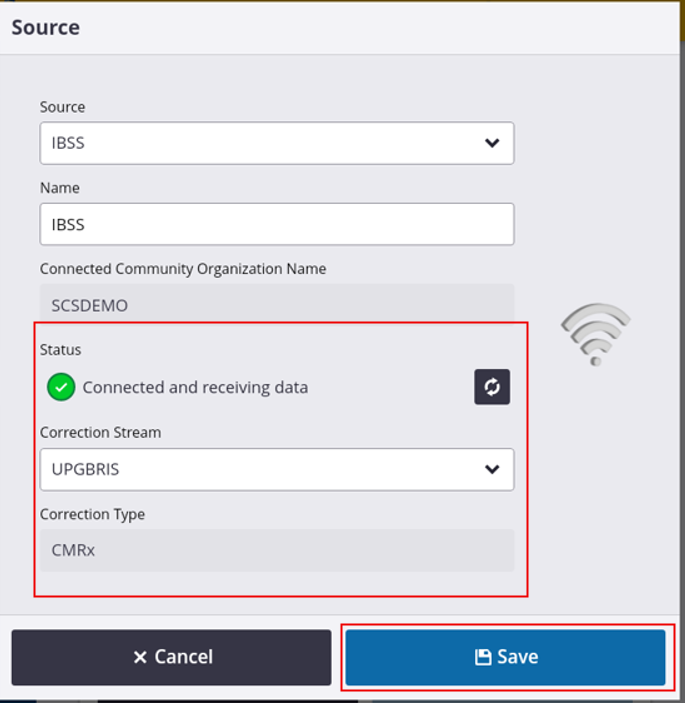

10. Once the stream has been confirmed, the Status will show Connected and receiving data. Now hit the save button to confirm the settings. You are now connected to the IBSS base.

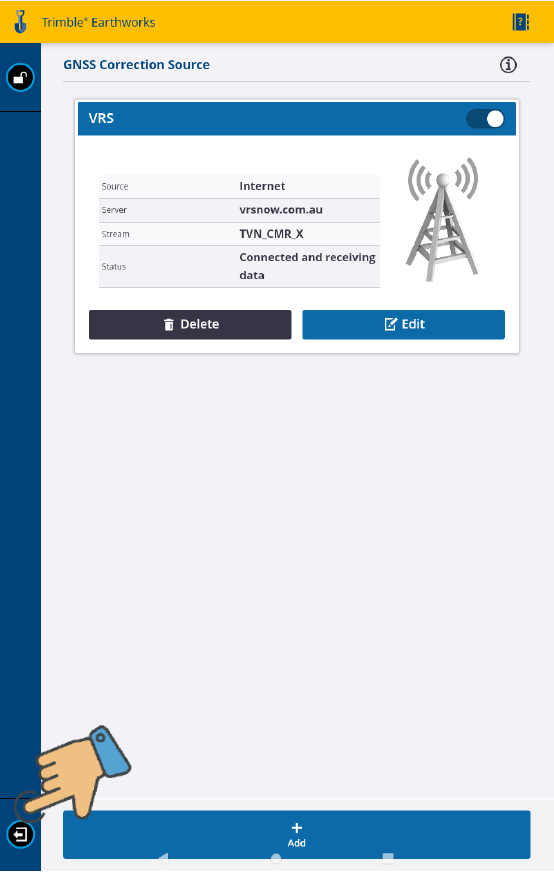

11. You can now return the EarthWorks App by tapping on the Exit button on the bottom left of the screen.

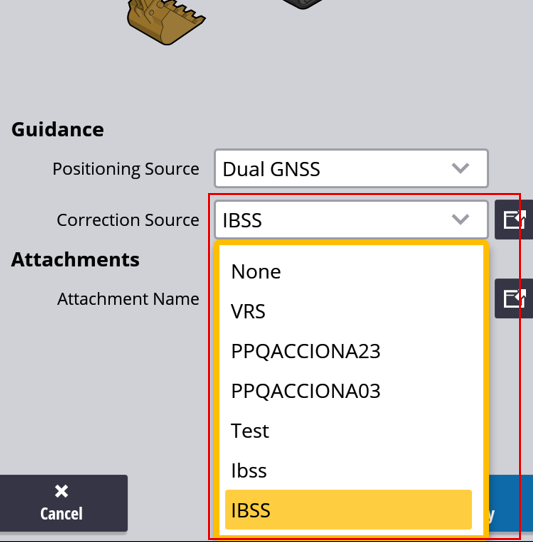

12. Your IBSS Base will now be available in the list under Correction Source.

Note: For further assistance please call 1800 748 324 or email supportgateway@sitechcs.com
